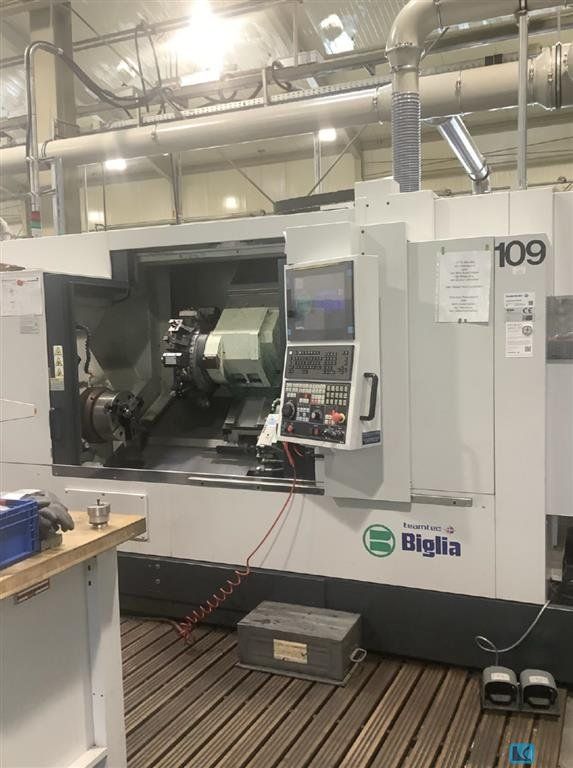

Biglia Fanuc IHMi Manual Guide 3000 RPM B 1250Y 3 Axis

X Axis Travel: 305 mm
Y Axis Travel: 140 mm (+80 / -60 mm)
Z Axis Travel: 1314 mm

Rapid Traverse (X): 24 m/min
Rapid Traverse (Z): 18 m/min
Rapid Traverse (Y): 7.5 m/min

Control: Fanuc IHMi Manual Guide
Swing Diameter: 680 mm
Turning Diameter: 552 mm
Turning Length: 1195 mm
Bar Material Diameter: 94 mm

Spindle Speed: 3000 RPM
Spindle Power: 38 kW
Spindle Torque: 1014 Nm
Turret Stations: 16
Rotary Tool Stations: 16

Driven Tool Power: 10 / 17.5 kW
Driven Tool Torque: 32 / 56 Nm
Driven Tool Speed: 6000 RPM

Tailstock Travel: 1310 mm
Tailstock Quill Stroke: 150 mm
Tailstock Quill Diameter: 115 mm
Tailstock Quill Taper: MK 4

Programmable Steady Rest: SMW Autoblok SLU3.2-Z
High Pressure Coolant System: 40 bar / 20 l/min
Power Chuck: SMW BHD 315/95/A8

Chip Conveyor: Yes
Barfeeder Interface: Yes
Parts Catcher: Yes
Parts Disposal Conveyor: Yes
Automatic Tool Eye: Yes
Tool Life Management: Yes
Coolant Gun: Yes
Signal Lamp: 2 Colors
Standard Set of Tool Holders: Yes

Rotary Tool Holders: 3/3
High Pressure Coolant: 5 bar
Total Power Requirement: 37 kVA
Machine Weight: Approx. 8.1 t
Machine Dimensions: 5.62 × 2.19 × 2.49 m
