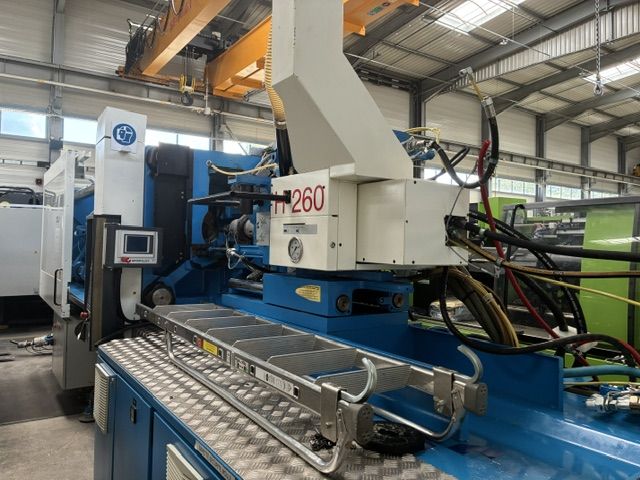

Billion Bi Material H 150 – 260 DIXIT II 320 T
Ref :
2806926-6-AW
Condition :
Used
Manufacturer :
Billion
Model :
Bi Material H 150 – 260 DIXIT II
Capacity :
320 T
Year(s) :
2007
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Injection Unit
Screw Diameter: 38 mm
Calculated Injection Volume: 163 cm3
Length/Diameter Ratio: 20 L/D
Maximum Injection Flow Rate: 450 cm3/s
Material Pressure: 1564 bar
Screw Speed: 300 RPM
Closing Unit
Closing Force: 3200 kN
Opening Stroke: 660 mm
Minimum Mold Thickness: 280 mm
Maximum Distance Between Platters: 1290 mm
Passage Between Columns: 735 x 735 mm
Platters Dimensions: 1045 x 1045 mm
Other
Equipped with a GROSFILLEY G3 DIGITAL rotary table, Group H 150:
Screw diameter 32 mm
Injection volume 116 cm3
Commissioned: 2007
Tonnage: 320
