1/1

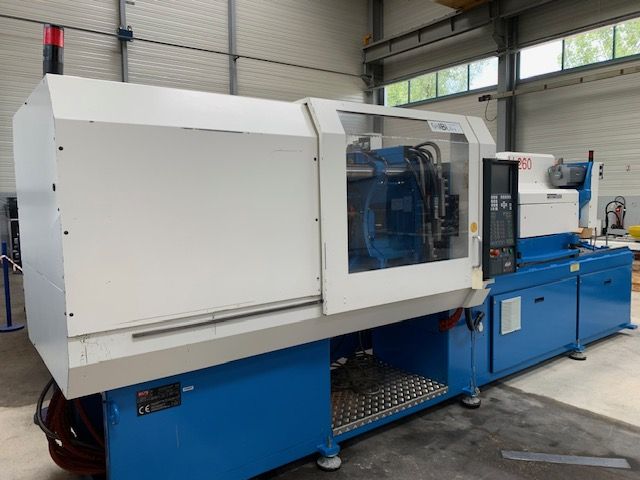

Billion H 260 Select Dixit II 150 T
Ref :
2717601-6-MT
Condition :
Used
Manufacturer :
Billion
Model :
H 260 Select Dixit II
Capacity :
150 T
Year(s) :
2008
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Injection Unit
Screw Diameter: 28 mm
Calculated Injection Volume: 88 cm3
Length/Diameter Ratio: 20 L/D
Maximum Injection Rate: 123 cm3/s
Material Pressure: 2200 bar
Hydraulic Motor Torque: 200 Nm
Clamping Unit
Clamping Force: 1500 kN
Opening Stroke: 500 mm
Minimum Mold Thickness: 200 mm
Maximum Distance Between Platens: 1050 mm
Passage Between Columns: 545 x 545 mm
Plate Dimensions: 765 x 765 mm
General
Dimensions: 5.8 x 2 x 1.5 m
Weight: 6000 kg
