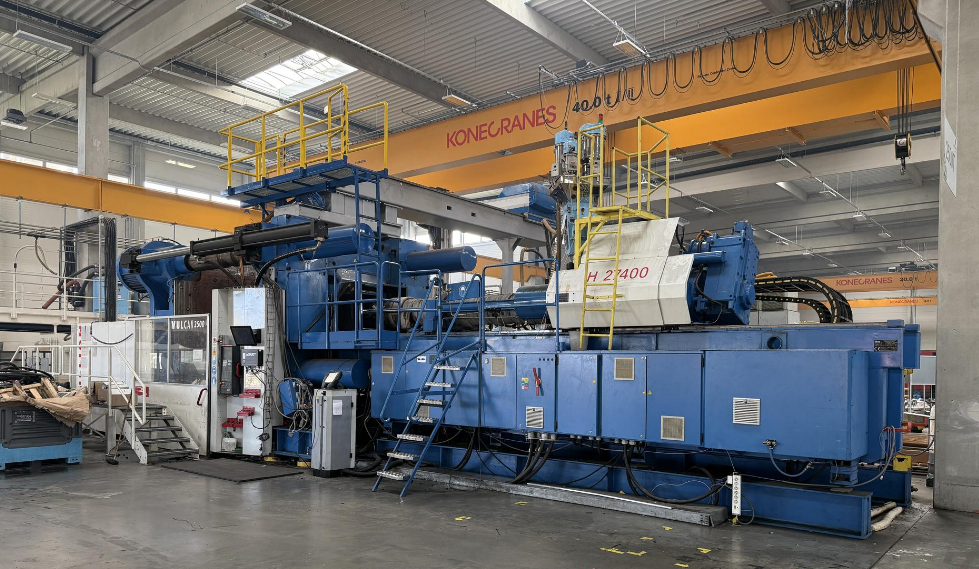

Billion H27400-2500T 2500 T

Clamping unit:
Clamping force: 2500 t
Screw diameter: 145 mm
Distance between tie bars V: 1660 mm
Distance between tie bars H: 2025 mm
Maximum clamping force: 25,255 kN
Minimum mould thickness: 830 mm
Maximum mould thickness (1): 1,900 mm
Maximum opening stroke: 2,780 mm
Platens overall horizontal dimension: 2,800 mm
Platens overall vertical dimension: 2,400 mm
Horizontal space between tie bars: 2,025 mm
Vertical space between tie bars: 1,660 mm
Maximum clearance between platens: 3,610 mm
Maximum opening speed: 600 mm/s
Maximum closing speed: 650 mm/s
Maximum opening force: 1,362 kN
Maximum closing unit force: 581 kN
Tie bars diameter: 380 mm

Ejection
Maximum stroke: 400 mm
Maximum forward force: 422 kN
Maximum backward force: 284 kN
Maximum forward speed: 300 mm/s
Maximum backward speed: 300 mm/s
Minimum forward and backward speed: 10 mm/s

Injection Unit
Model: H 27400
Version: TP – SPR
Screw diameter: 145 mm
L/D ratio: 23
Max. theoretical displaced volume: 11,889 cm3
Maximum pressure on the material: 2,307 bar
Maximum injection flow delivery: 2,311 cm3/s
Theoretical delivery per revolution (1): – cm3

Screw driving motor:
Nominal torque at 100%: 140 m.daN
Maximum screw stroke: 760 mm
Maximum screw forward speed: 140 mm/s

Injection unit stroke: –
With 1300T – 1600T – 2000T – 2500T: 1,200 mm

With: –
Nozzle tip contact force: 285 kN
Max. injection unit forward speed: 150 mm/s
Max. injection unit backward speed: 150 mm/s

Note:
(1) Standard thermoplastic screw
