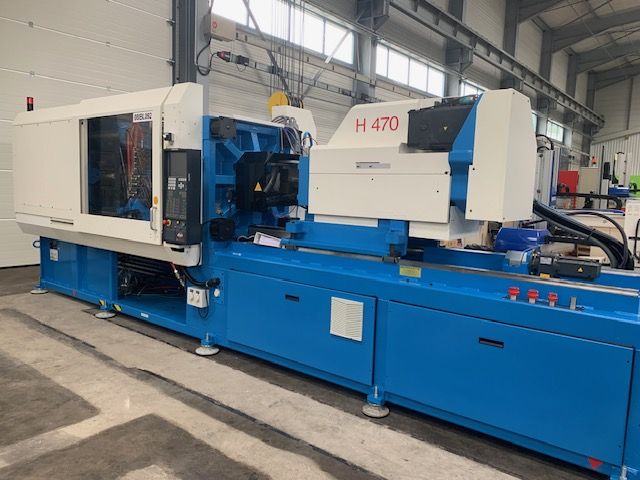

Billion Select H 470 Dixit II 250 T
Ref :
2723598-6-MT
Condition :
Used
Manufacturer :
Billion
Model :
Select H 470 Dixit II
Capacity :
250 T
Year(s) :
2010
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Injection Unit
Screw Diameter: 32 mm
Calculated Injection Volume: 140 cm3
Length/Diameter Ratio: 19 L/D
Maximum Injection Rate: 161 cm3/s
Material Pressure: 2300 bar
Clamping Unit
Clamping Force: 2500 kN
Opening Stroke: 660 mm
Minimum Mold Thickness: 330 mm
Maximum Distance Between Platens: 1390 mm
Passage Between Columns: 735 x 735 mm
Plate Dimensions: 1045 x 1045 mm
General
Dimensions: 6.7 x 2.3 x 1.9 m
Weight: 12,000 kg
Other
Equipment: DIXIT II control
Commissioned: 2010
Tonnage: 250
