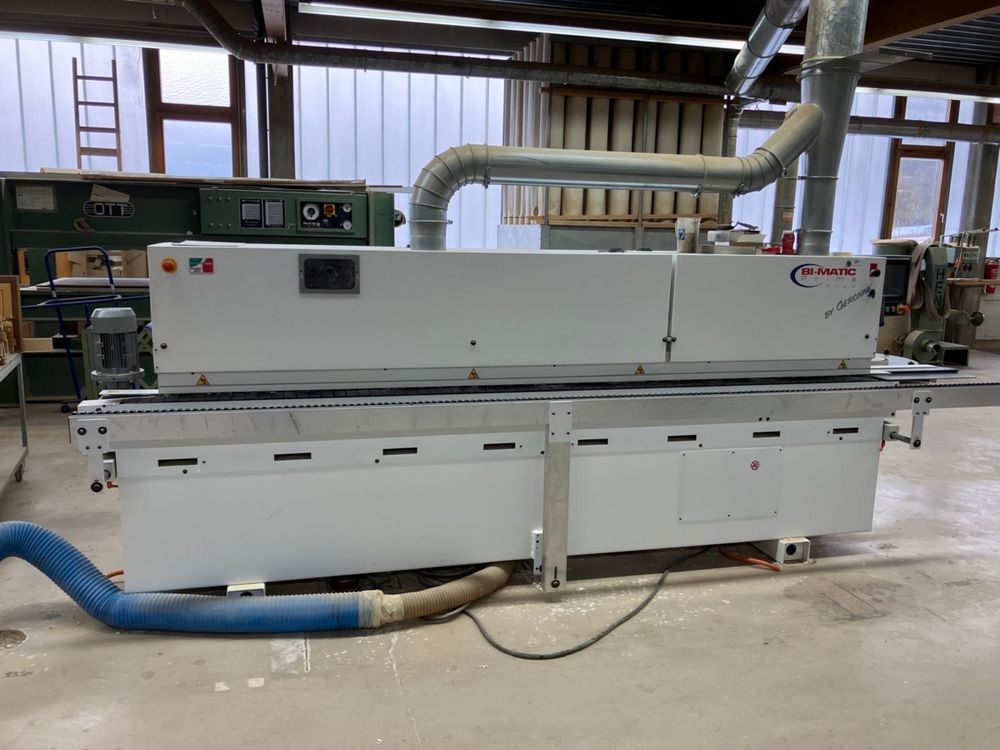

Bimatic PRIMA 7.3 r.a. PLUS MAN

Edge banding machine
Units:
Jointing unit including AIGNER diamond jointing cutter heads, with
DIA Konstantin interchangeable cutter system and controlled edge blow-off nozzle behind the 2nd jointing cutter head.
Crosscut saw unit with extraction device including pneumatically swivelling saw blades, adjustable and programmable from the control panel.
Radius milling unit
Rounding unit (copying milling unit) with insertable base function and
2-position turret. The entire unit can be inserted and removed pneumatically.
Radius scraper unit can be inserted and removed, including extraction device with chip collection box for scraper chips.
Flat scraper unit with 4-way scraper blades.
The entire unit can be inserted and removed.
Flat scraper blade unit with 4-way scraper blade.
The entire unit can be inserted and removed.
Removed glue residue is extracted.
Buffing unit with 2 fabric buffing discs arranged at an angle.

Equipment:
- High-gloss package: roller scanning for radius milling unit, radius scraper unit and flat scraper unit
- Large viewing, noise and protective cabin for all units and for the glue pot
- Interior lighting
- Control panel with 12" touchscreen and self-explanatory user guidance
- USB port for data backup and data transfer
- Network connection for online support
- Controlled pneumatic cylinder for workpiece distance control
- Teflon-coated glue pot with quick-change system and energy-saving mode in standby
- Glue roller with screw conveyor for long and tall workpieces (especially for PUR adhesive)
- Pressure zone with motor-driven 1st pressure roller
- Heavy roller cap shear for edges 54 x 3 mm
- Feed guide adjustable via hand wheel (joint thickness adjustment) with numerical display
- Upper roller pressure bar with numerical workpiece thickness display and hand wheel adjustment
- Pressure zone with numerical display and handwheel adjustment
- Manual 2-position turret for radius milling unit
- Manual 2-position turret for rounding unit
- Manual 2-position turret for radius scraper unit

Technical data:
Edge thickness: 0.4 - 3 mm
Min. panel width (without rounding unit): 80 mm
Min. panel width (with rounding unit): 130 mm
Min. panel length (without rounding unit): 100 mm
Min. panel length (with rounding unit): 300 mm
Min. panel thickness: 10 mm
Max. panel thickness: 50 mm
Feed speed: 9 m/min
Suction nozzle: 2 x 150 mm
Connection: 9 kW - 400 V
Compressed air: 6 bar
