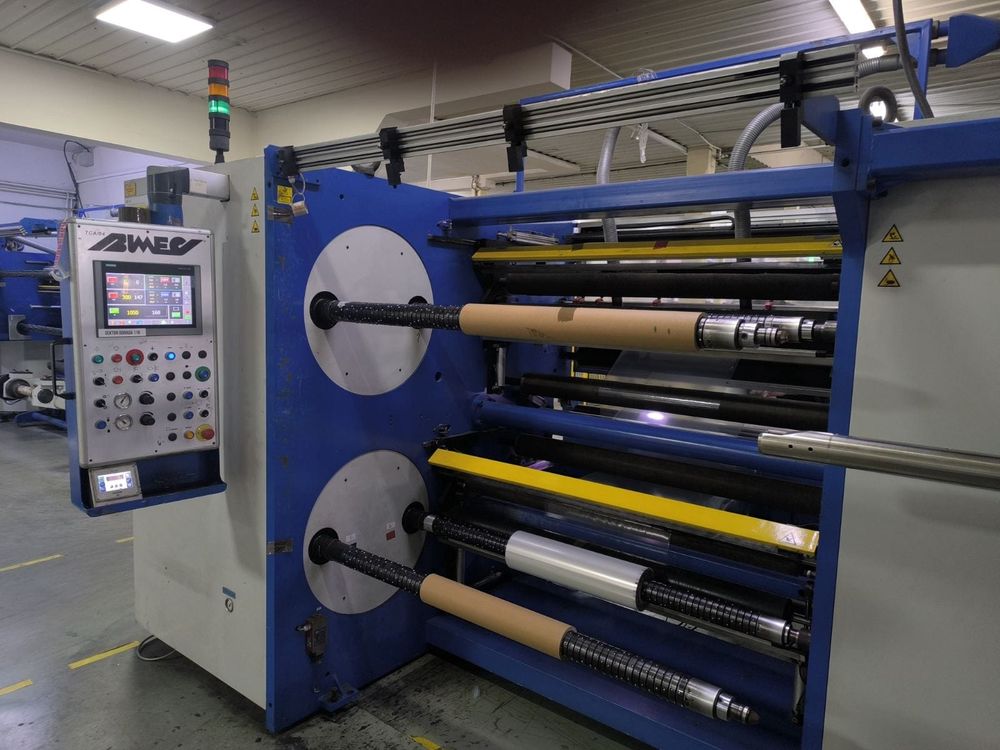

Bimec TCA/64C 1350 mm

Materials: LDPE, BOPP, OPP, CPP, PET, PVC, PET+ALU+LDPE, HDPE
Double Turret Rewinder
Maximum width: 1350 mm
Maximum parent roll diameter: 1000 mm
Maximum finished roll diameter: 610 mm
Maximum parent roll weight: 1500 kg
Minimum cutting width: 45 mm (the owner successfully ran 36 mm and 42 mm widths for tea packaging)
System for batch roll lifting and arm movement
Shaftless unwinder chuck – 76 and chuck adaptors for 152 mm
Shaft rewinder core: 76 mm
Unwind stand side shift: ±50
Main AC. asynchronous motor
Rewind AC. asynchronous motor
Rotating turret AC. gearmotor
System automatic web guide FIFE with line sensor SE-46C
Servo ventilated pneumatic brake
Unwind tension control by dancer roller
12 female knives included
Digital manual razor blade holder and female knife positioning system (by means of laser pointer)
Trim exhauster AR5C (4 Kw) with pipes, nozzles and silencer
Programmable rewinding tension control
Cross cutting system at rewind
Computerised control system by and operator panel (Siemens 12’’ touch screen)
Max load capacity per shaft 300 kg in case of multislitting; 230 kg in case of slit in 2 finished reels.
Core positioning system through manual laser beam system
Set of antistatic bars complete with feeder
Side stand model SBP 1.0 with 45° rotation with respect to the vertical axis for the quick unloading
of the rewound rolls (up to 900 mm web width)
Ethernet card for remote fault/help by Bimec engineers or intercompany (for PLC diagnostic only)
Control panel incorporated in the machine
All drivers are Parker and Siemens. HMI is Siemens
Speed: 600 m/min
No CE certificate
Voltage : 400 V, 3 phase, 50 Hz. (L1 + L2 + L3 + PE, without neutral)
Visible in production
Immediately available
