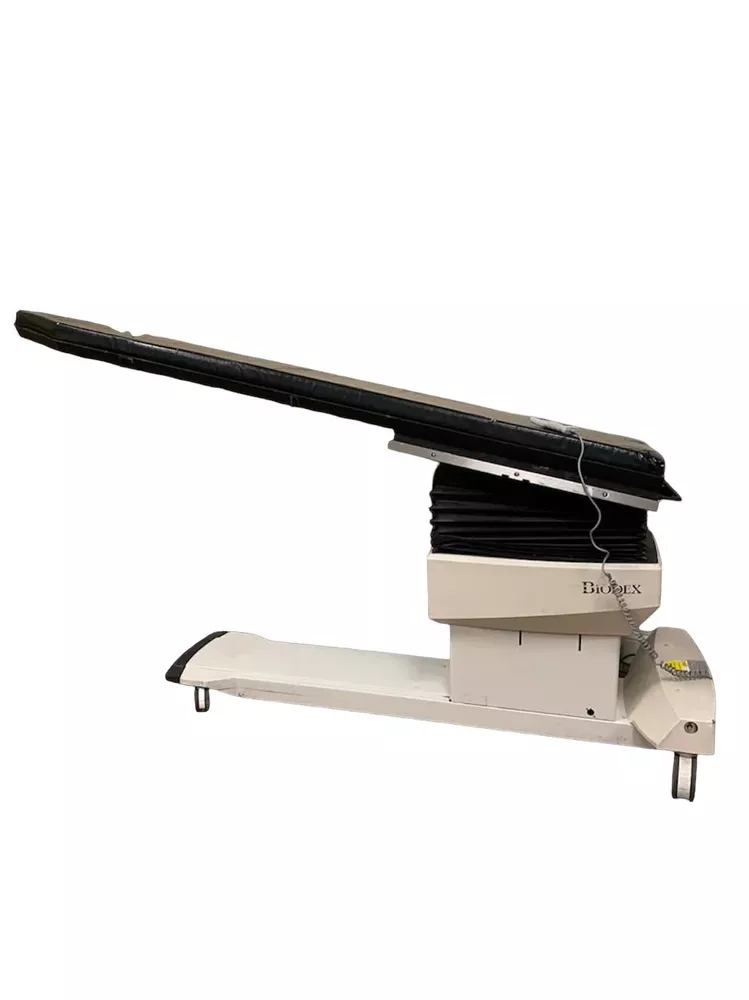

Biodex Pain Management C-arm table Contour Design

BIODEX Pain Management C-arm table Contour Design

Included:
Hand Switch
Used mattres Pad

Biodex Pain Management C-Arm Table with Contoured Tabletop is ideal for
pain care applications with its large radiolucent area, motorized actuation of height,
lateral roll, and Trendelenburg motions.
Fully accommodates portable or ceiling-suspended C-Arm positioning for
the closest possible access to the cervical spine.
Functional design allows clinicians to achieve optimum image resolution and
provides reduced radiation exposure.
Added workspace at the headend maintains the
narrowness required for cervical procedures.

Specifications:
Dimensions: 93" L x 26" W with OR accessory rails
Tabletop: 90" L x 24" W
Face Cutout Area: Approximately 7" x 2"
Radiolucent Area: 60" L x 24" W unobstructed head to
accessory rail - 4" L x 17.5" W additional, between accessory rails
Radiolucent Area, Total Length: 64" L
Tabletop Material: Carbon fiber with integral head section
Mattress: Seamless, 2" thick
Attenuation: Tabletop: 0.7 mm Aluminum equivalence
Mattress: 0.5 mm Aluminum equivalence
Motions: Height Adjustable: 30" to 40" - Trendelenburg: 0° to 20° - Reverse Trendelenburg: 0° to 20° - Lateral Roll: 0° to 20°
Hand Control: activates height, lateral roll and Trendelenburg motions
Optional Foot Control: activates height, lateral roll and Trendelenburg motions
Wheels: Head End 3" swivel casters, integral locking system on base
Foot End 5" swivel casters with central locking
Accessory Rails: Standard OR accessory rails 30" x 1.12" x .375"
mounted near foot end of table
Patient Restraints: Three body straps
Finish: Powder coat
Patient Capacity: 500 lb; weight tested to four times the patient load rating
Lift Capacity: May vary between 460 lb - 500 lb based on line voltage
Power: 115 VAC
Certifications: ETL and cETL listed to UL-2601-1,
CAN/CSA C22.2 No.: 601-1-M90, EN 60601-1, IEC 60601-1-2:2001-09
