Bitzer Complete Cooling Plant

Cooling Capacity: 581 kW / 170.88 tons
Cooling Capacity at -10°C / +35°C: 435 kW
Operating Hours: 1,150 h
Containerized Outdoor Installation
Isolated Container
Screw Compressor Packages: 3 × HSK 7461-80
Electric Motor: 3 × 63 kW
Oil Filter
Low Pressure Gauge
High Pressure Gauge
Low Pressure Switch
High Pressure Switch
Central Oil Separator
Heat Exchanger: Vahterus PHSE-3LL-108-1/1
Liquid Subcooling
Complete Control Cabinet
Central Liquid Vessel

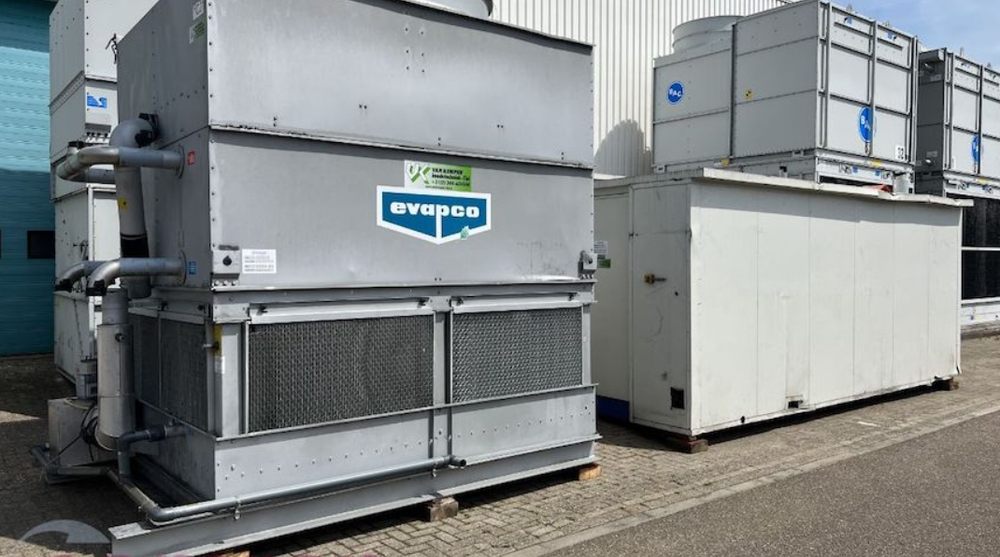

Evaporative Condenser: ATC-M252E
Frequency Controlled Fan Motor
Refrigeration Drawings
Electrical Drawings
Refrigerant: R404A / All Freon
Operating Temperature: -3°C / +35°C
Voltage: 400 V
Absorbed Power: 154 kW
Dimensions (L × W × H): 610 × 270 × 255 cm
