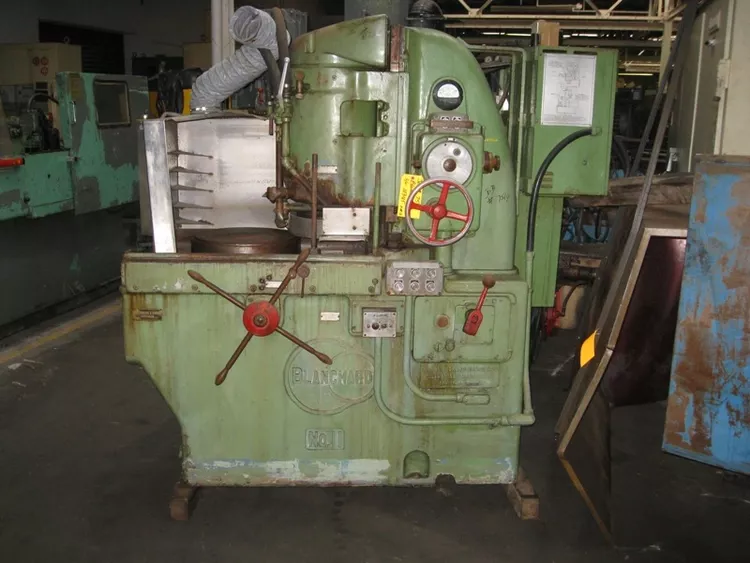

Blanchard #11-16

Diameter Capacity: 20"
Height Capacity: 7"
Magnetic Chuck Diameter: 16"
Chuck Pole Spacing: 1/2"
Chuck Center Hole: 3/4"
Chuck Tapped Holes: Four 3/8"
Chuck Voltage: 110 or 220 V DC
Chuck Power Requirement: 156 W
Chuck Amperage (110 V): 1.4 A
Chuck Amperage (220 V): 0.7 A
Wheel Size: 11" diameter x 5" deep x 1" thick
Usable Wheel Depth: 4-1/4"
Wheel Speed: 1500 RPM
Chuck Speeds (60 Hz): 15, 24, 41, 64 RPM
Chuck Speeds (25/50 Hz): 12, 20, 35, 53 RPM
Vertical Feed: Hand or power
Feed Dial Graduation: 0.0005"
Power Feed Rate (60 Hz): 0.003 to 0.070 in/min
Power Feed Rate (50 Hz): 0.003 to 0.058 in/min
Max Down Feed Before Stop: 0.048"
Rapid Raise/Lower: Power, interlocked with feed
Coolant Tank Capacity: >75 gallons
Coolant Pump Flow: 16 GPM
Coolant Pipes: 3/4"
Machine Length: 5'3"
Machine Width: 3'6"
Max Height: 6'8-3/4"
Min Height: 5'9-1/2"
Chuck Height from Floor: 36-1/2"
Weight: 7,000 lbs
Chuck Type: 16" magnetic with demagnetizing switch
Wheel Head Motor: 15 HP
Table Drive Motor: 1 HP
Head Raise/Lower Motor: Enclosed, ball bearing
Coolant Pump Motor: 1/4 HP
Control Panel: Wired with starters, relays, disconnect switch
Includes Water Guards and Piping
Solid Wheel
Wet Base
Attached Electrical
