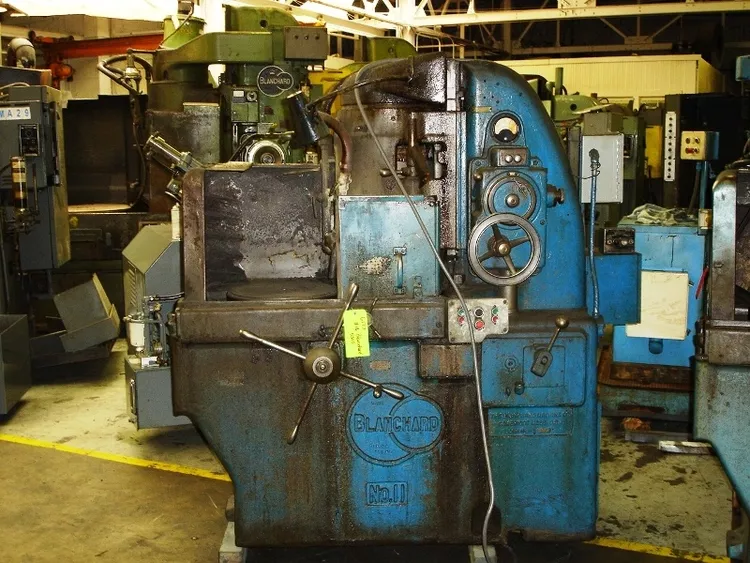

Blanchard 11-16

20" grinding capacity
7" vertical capacity over 16" chuck
16" steel magnetic chuck with 1/2" pole spacing
Chuck center hole: 3/4"
Chuck DC power: 110V or 220V, 156 watts
Chuck current draw: 1.4A (110V), 0.7A (220V)
500W rectifier sufficient if DC unavailable
Cylinder wheel size: 11" diameter x 5" deep x 1" thick
Usable wheel depth: 4-1/4"
Wheel speed: 1500 RPM (25 & 50 cycle)
Chuck speeds (60 Hz): 15, 24, 41, 64 RPM
Chuck speeds (25 & 50 Hz): 12, 20, 35, 53 RPM
Vertical downfeed by hand or power
Downfeed dial graduation: 0.0005"
Power feed range (60 Hz): 0.003–0.070 in/min
Power feed range (50 Hz): 0.003–0.058 in/min
Max downfeed before stop: 0.048"
Rapid raise/lower power feed with interlock
Coolant tank capacity: 75+ gallons
Coolant pump: centrifugal, 16 GPM
Coolant piping: 3/4" internal & external
Machine length: 5'3"
Machine width: 3'6"
Max height: 6'8-3/4"
Min height: 5'9-1/2"
Chuck height from floor: 36-1/2"
Weight: 6,100 lbs
Export dimensions: 6'3" x 4'3" x 6'11", 175 cu ft
15 HP wheel head motor
1 HP table drive motor
1/4 HP coolant pump motor
All motors: totally enclosed, ball bearing
Push-button controls: 110V front panel
Control panel: includes starters, relays, disconnect
Water guards and piping included
A.C./D.C. amperage meter
Solid wheel
Load monitor
