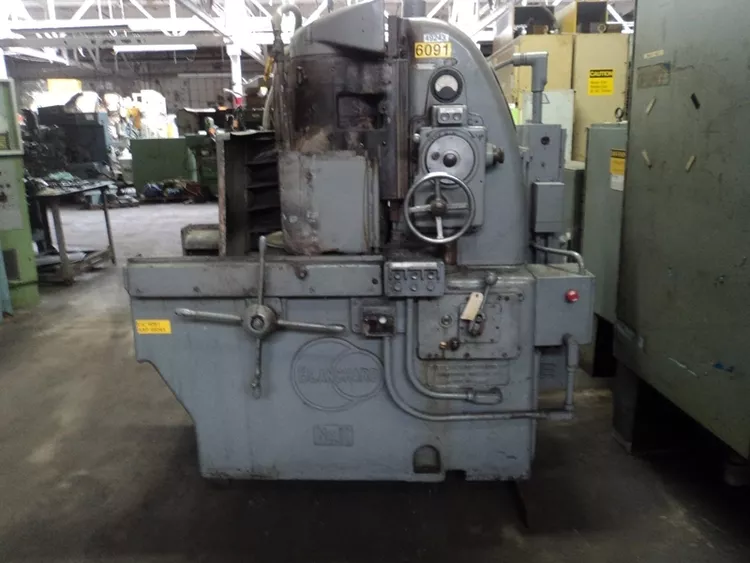

Blanchard #11-16

Size capacity: 20"
Vertical range: 7"
Magnetic chuck diameter: 16"
Chuck type: Steel magnetic chuck
Chuck pole spacing: 1/2"
Chuck center hole: 3/4"
Chuck tapped holes: Four 3/8"
Chuck voltage: 110 or 220 V DC
Chuck power requirement: 156 watts
Chuck amperage: 1.4 A (110 V), 0.7 A (220 V)
Wheel type: Solid
Wheel diameter: 11"
Wheel usable depth: 4 1/4"
Wheel RPM: 1500 RPM
Chuck geared speeds (60 Hz): 15, 24, 41, 64 RPM
Chuck geared speeds (50 Hz): 12, 20, 35, 53 RPM
Feed type: Manual or power
Feed dial graduation: 0.0005"
Power feed rate (60 Hz): 0.003–0.070 in/min
Power feed rate (50 Hz): 0.003–0.058 in/min
Max downfeed before stop: 0.048"
Wheelhead raise/lower: Powered
Coolant tank capacity: >75 gallons
Coolant pump discharge: 16 gallons/min
Coolant piping: 3/4"
Floor space length: 5'3"
Floor space width: 3'6"
Max machine height: 6'8 3/4"
Min machine height: 5'9 1/2"
Chuck height from floor: 36 1/2"
Machine weight: 7,000 lbs
Motor (wheel head): 15 HP
Motor (table drive): 1 HP
Motor (head lift): Torque motor
Motor (coolant): 1/4 HP
Chuck demagnetizing switch: Included
Control panel: Included with push buttons and protective relays
Water guards and piping: Included
Load monitor: Included
Wet base: Included
