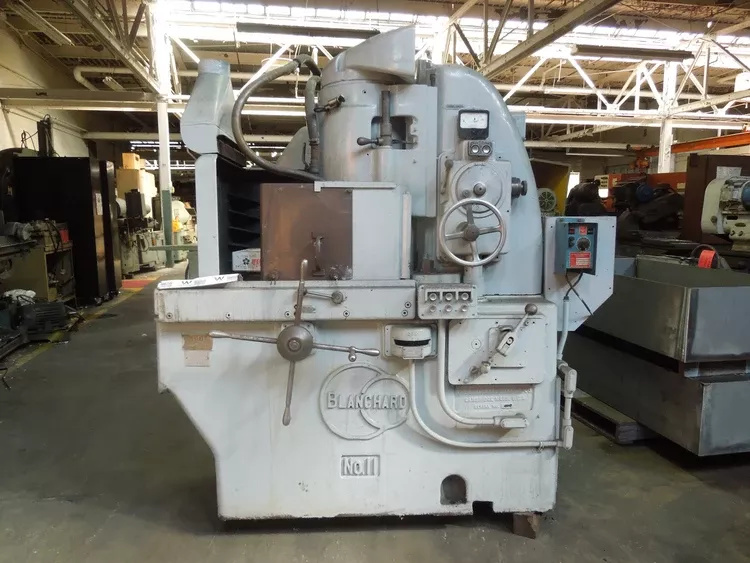

Blanchard 11-16

16 in grinding capacity
11 × 5 × 1 in wheel size (usable depth 4.25 in)
1500 RPM wheel speed
16 in one-piece steel magnetic chuck
1/2 in pole spacing
3/4 in center hole in chuck
Four 3/8 in tapped holes in chuck
Chuck operates on DC (110 or 220 volts)
Chuck power 156 watts
Chuck current 1.4 A (110 V) / 0.7 A (220 V)
4 geared chuck speeds: 15, 24, 41, 64 RPM (60 Hz)
4 geared chuck speeds: 12, 20, 35, 53 RPM (25/50 Hz)
Vertical downfeed manual or powered
Dial graduated in 0.0005 in
Power feed range 0.003 to 0.070 in/min (60 Hz)
Power feed range 0.003 to 0.058 in/min (50 Hz)
Max automatic downfeed stop: 0.048 in
Power rapid raise and lower of wheel head
Water tank capacity over 75 gal
Centrifugal pump flow rate: 16 gal/min
Machine length: 5 ft 3 in
Machine width: 3 ft 6 in
Max machine height: 6 ft 8.75 in
Min machine height: 5 ft 9.5 in
Chuck height from floor: 36.5 in
Shipping weight: 6100 lb
Export case dimensions: 6 ft 3 in × 4 ft 3 in × 6 ft 11 in
Export volume: 175 cubic feet
15 HP motor in wheel head
1 HP motor for table drive
1/4 HP coolant pump motor
Electromagnetic chuck control
Coolant system in base
Load monitor
Dresser
Solid wheel
Ammeter in wheel motor circuit
Fully wired control panel with disconnect switch and protective relays
Water guards and piping included
