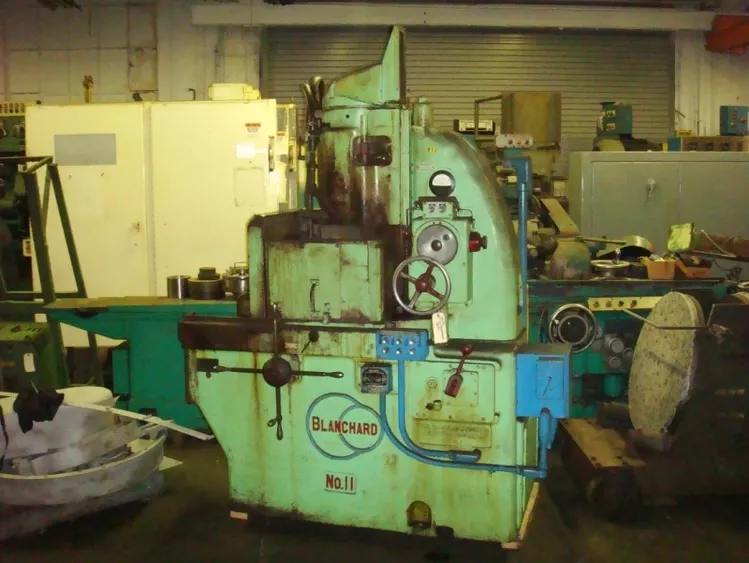

Blanchard 11-16

20 in grinding range
7 in max height over 16 in chuck
16 in steel magnetic chuck
1/2 in pole spacing
3/4 in center hole
Four 3/8 in tapped holes
Chuck voltage: 110 or 220 V DC
Chuck power: 156 W
Chuck current: 1.4 A (110 V), 0.7 A (220 V)
11 × 5 × 1 in cylinder wheel (usable depth 4.25 in)
1500 RPM wheel speed
Chuck speeds (60 Hz): 15, 24, 41, 64 RPM
Chuck speeds (25/50 Hz): 12, 20, 35, 53 RPM
Manual or power vertical downfeed
Dial graduated in 0.0005 in
Power feed: 0.003–0.070 in/min (60 Hz)
Power feed: 0.003–0.058 in/min (50 Hz)
Max auto downfeed stop: 0.048 in
Rapid power raise/lower of wheel head
Coolant tank capacity: over 75 gallons
Coolant pump flow rate: 16 gal/min
Machine length: 5 ft 3 in
Machine width: 3 ft 6 in
Max height: 6 ft 8.75 in
Min height: 5 ft 9.5 in
Chuck height from floor: 36.5 in
Shipping weight: 6100 lb
Export dimensions: 6 ft 3 in × 4 ft 3 in × 6 ft 11 in
Export volume: 175 cubic feet
16 in magnetic chuck with demagnetizing switch
15 HP spindle motor
Rotor mounted on machine spindle
Ammeter in wheel motor circuit
1 HP motor for table drive
1/4 HP coolant pump motor
Control panel with push buttons, starters, protective relays
Disconnect switch
Water guards and piping
Solid wheel
Dresser
Coolant in base
