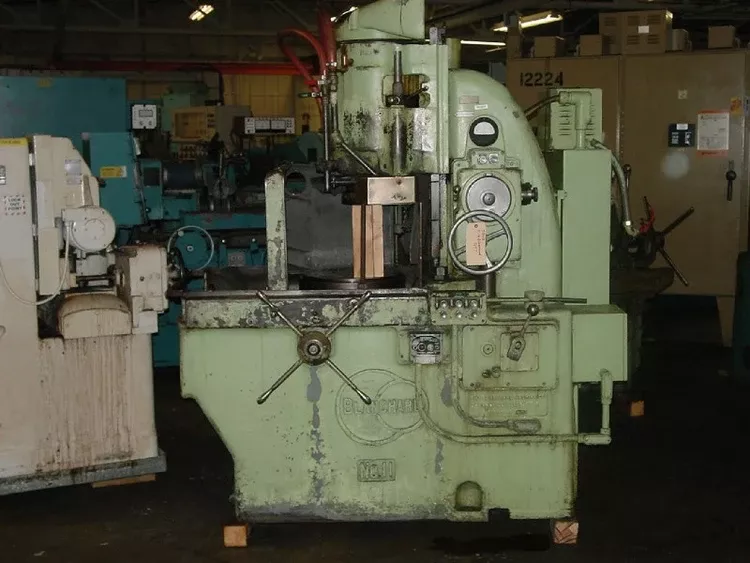

Blanchard 11-16

20 in grinding range
7 in maximum height over 16 in chuck
16 in steel magnetic chuck
1/2 in pole spacing
3/4 in center hole
Four 3/8 in tapped holes in chuck
Chuck runs on DC 110 or 220 V
Chuck power 156 W
Chuck current 1.4 A (110 V), 0.7 A (220 V)
11 × 5 × 1 in cylinder wheel (usable depth 4.25 in)
1500 RPM wheel speed
Chuck speeds: 15, 24, 41, 64 RPM (60 Hz)
Vertical downfeed manual or power
Dial graduated in 0.0005 in
Power feed 0.003–0.070 in/min (60 Hz)
Wheel head power rapid raise/lower interlocked with feed
Coolant tank capacity over 75 gal
Centrifugal coolant pump 16 gal/min
Machine length 5 ft 3 in
Machine width 3 ft 6 in
Maximum height 6 ft 8.75 in
Minimum height 5 ft 9.5 in
Chuck height from floor 36.5 in
Net weight 5475 lb
16 in magnetic chuck with demagnetizing switch
15 HP spindle motor
Swing‑arm dresser
Load monitor
Solid wheel
Ammeter in wheel motor circuit
1 HP table‑drive motor
1/4 HP coolant‑pump motor
Control panel with push buttons, starters, protective relays, and disconnect switch
Water guards and piping
