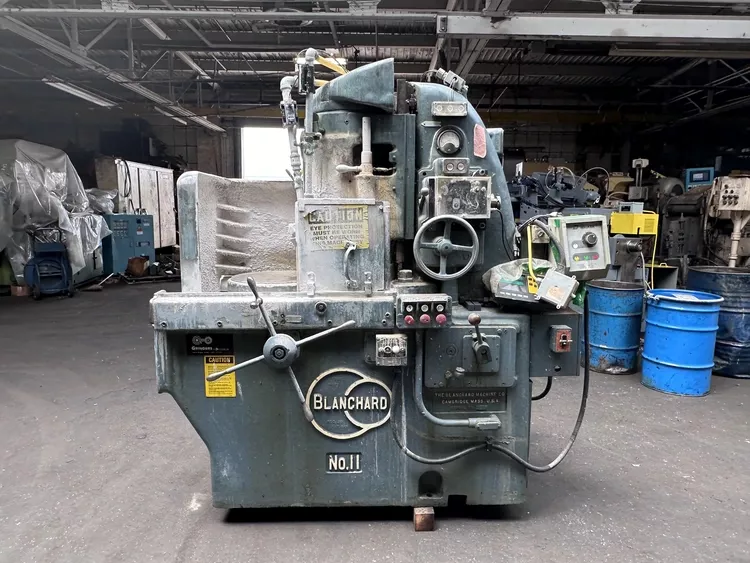

Blanchard 11-16

Swing diameter: 20"
Vertical capacity: 7"
Magnetic chuck diameter: 16"
Magnetic chuck pole spacing: 1/2"
Chuck center hole: 3/4"
Chuck tapped holes: Four 3/8"
Chuck voltage: 110/220V DC
Chuck power: 156 watts
Chuck current: 1.4 A at 110V, 0.7 A at 220V
Grinding wheel diameter: 11"
Grinding wheel thickness: 1"
Grinding wheel depth: 5"
Usable wheel depth: 4 1/4"
Wheel speed: 1500 RPM
Chuck speed (60 Hz): 15, 24, 41, 64 RPM
Chuck speed (50 Hz): 12, 20, 35, 53 RPM
Downfeed dial graduation: 0.0005"
Power downfeed range (60 Hz): 0.003"–0.070"/min
Power downfeed range (50 Hz): 0.003"–0.058"/min
Max downfeed before stop: 0.048"
Wheelhead rapid raise/lower: Yes, by power
Coolant tank capacity: 75 gallons
Coolant pump flow rate: 16 gallons/min
Coolant pipe size: 3/4"
Machine footprint: 5'3" x 3'6"
Maximum height: 6'8 3/4"
Minimum height: 5'9 1/2"
Height of chuck from floor: 36 1/2"
Machine weight: 6100 lbs
Chuck demagnetizing switch
Wheel motor: 15 HP
Table drive motor: 1 HP
Rapid raise/lower motor: 1/4 HP
Coolant pump motor: 1/4 HP
Ammeter in wheel motor circuit
Electrical control panel with starters and relays
Disconnect switch
Water guards and piping
Dresser
Solid wheel
Load monitor
Electrical components inside base
OS Walker chuck controls
DRO on vertical
