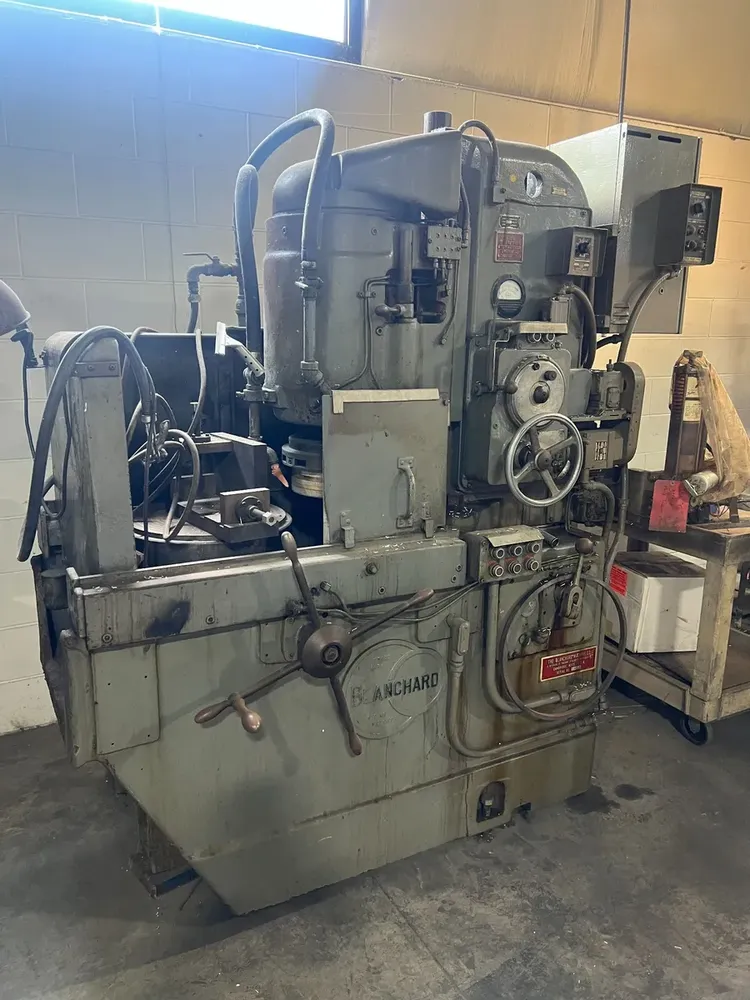

Blanchard 11-16

Chuck size: 16"
Swing: 20"
Maximum grinding height under wheel: 7"
Grinding wheel diameter: 11"
Grinding wheel width: 1"
Motor power: 15 HP
Table speeds: 15 / 24 / 41 / 64 rpm
Machine dimensions: 6'3" × 4'3" × 6'11"
Machine weight: 7,000 lb
16" diameter magnetic chuck with Neutrofier variable pull
20" swing inside splash guards
11" diameter solid ring wheel chuck
Manual table in/out
Incremental downfeed
Power vertical head travel
Coolant tank
Coolant pump in base
