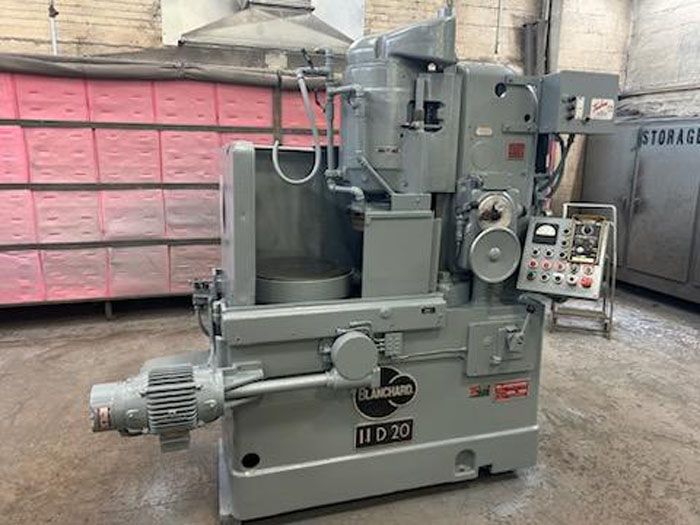

Blanchard 11D-20 ROTARY SURFACE GRINDING MACHINE

Diameter of magnetic chuck: 20"
Grinding wheel diameter: 11"
Maximum distance under new wheel: 12"
Table speeds: 15 - 64 RPM
Automatic downfeed to wheel head: .003 - .070 IPM
Hand and power elevation to wheel head
Cylindrical style wheel adapter
Neutrofier variable magnetic chuck control
Motor driven traverse for in-out saddle travel
Wheel dresser
Trabon lubrication system
Bijur lubrication system for saddle traverse with new lube lines
Grind table flat
Machine painted
Coolant pump
Machine weight: approx. 6500 lbs.
Machine dimensions: 84" x 48" x 80" high
