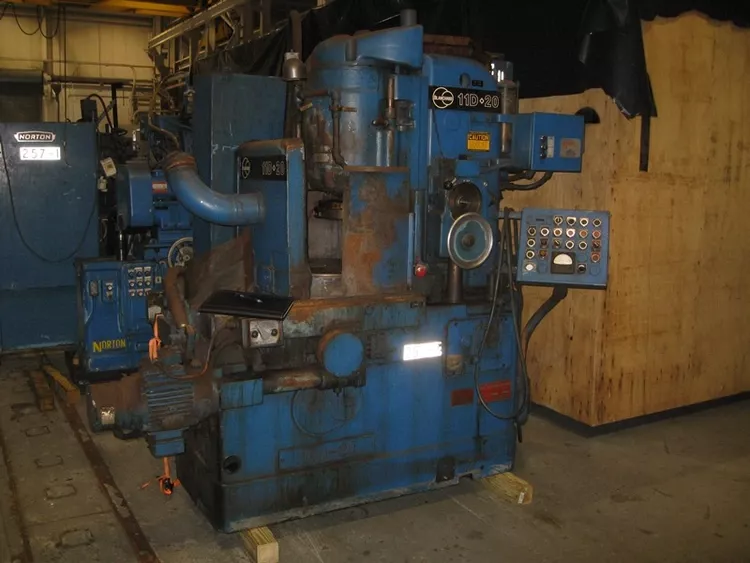

Blanchard 11D-20

Grinding capacity: 20" diameter x 11" height
Magnetic chuck size: 16"
Chuck type: One-piece steel magnetic
Chuck pole spacing: 1/2"
Chuck center hole: 3/4"
Chuck mounting holes: Four 3/8" tapped holes
Chuck power requirement: DC, 110 or 220 V, 156 W
Grinding wheel type: Solid wheel
Grinding wheel diameter: 13"
Wheel speed: 1500 RPM
Chuck speeds (60 Hz): 15, 24, 41, 64 RPM
Chuck speeds (50/25 Hz): 12, 20, 35, 53 RPM
Vertical feed: Manual or power
Dial graduation: 0.0005"
Power feed rate (60 Hz): 0.003 – 0.070 in/min
Power feed rate (50 Hz): 0.003 – 0.058 in/min
Max downfeed before stop: 0.048"
Rapid head raise/lower: Powered
Floor space (L x W): 5'3" x 3'6"
Machine height (max): 6' 8-3/4"
Machine height (min): 5' 9-1/2"
Chuck height from floor: 36-1/2"
Machine weight: 7,000 lbs
Export case size: 6'3" x 4'3" x 6'11"
Export volume: 175 cu ft
Main wheel motor: 15 HP
Table drive motor: 1 HP
Head raise/lower motor: Rapid torque motor
Coolant pump motor: 1/4 HP
Control panel: Full motor controls, push buttons, disconnect switch
Magnetic chuck with demagnetizing switch
AC ammeter
Load monitor
12" vertical capacity
Dry base
Power table
Dresser
Top plate
3-point tilting head feature
Stand-alone electrical
Trabon auto lubrication system
