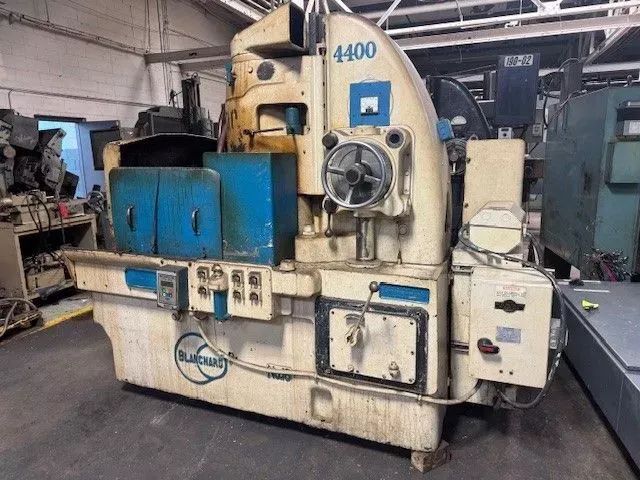

Blanchard 18-36

Chuck size 36"
Size capacity 36" diameter × 12" high
Orientation Vertical
Power 25 HP
Swing 39"
Under wheel 12"
Grinding wheel diameter 18"
Grinding wheel width 5"
Table type 36" one-piece steel magnetic chuck, 5/8" pole spacing
Chuck center hole 2"
Number of tapped holes in chuck 19, 3/8"
Maximum work load 3,000 lbs
Wheel type Cylinder 18 × 5 × 15", or segment 18 × 5 × 14"
Wheel head optional for 20" wheel
Wheel speed 720 RPM @ 60 Hz, 750 RPM @ 50 Hz
Chuck speeds 6, 9, 12, 18, 25, 33 RPM
Vertical feed hand or power
Power feed 0.004" – 0.080" per minute @ 60 Hz, 0.003" – 0.066" per minute @ 50 Hz
Maximum distance of down feed per dial turn 0.100"
Rapid wheel head rising and lowering, interlocked with feed
Water supply tank capacity 150 gallons
Motor-driven centrifugal pump 60 GPM, 1.5" discharge
Magnetic chuck current 36" diameter: 110 V DC, 7.2 A, 792 W; 220 V DC, 3.5 A, 792 W
Floor space length 9'3", width 4'11" including control cabinet
Maximum height 7'7"
Minimum height 6'9"
Height of chuck from floor 35"
All guards
Wheel dresser
Coolant in base
Attached electrical
Load monitor
Electromatic chuck control
Solid 18" wheel
12" vertical clearance
3/8" chuck life
