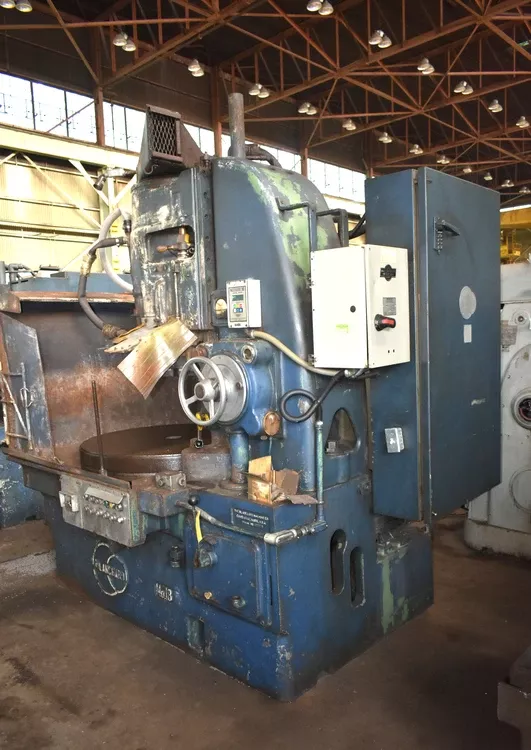

Blanchard 18-42

Chuck Size: 42"
Vertical/Horizontal: Vertical
Swing Between Coolant Guards: 48"
Height Under Wheel, Maximum: 15"
Magnetic Chuck Diameter: 42"
Magnetic Chuck Work Load Capacity: 2,000 lbs
Chuck Speeds: 6 to 33 RPM
Power Down Feeds: .004 to .080 IPM
Spindle Motor: 40 HP
Chuck Rotation Motor: 3 HP
Electrical System: 220-440 V / 3 Phase / 60 Hz
Floor Space: 9'9" x 5'5"
Overall Height: 8'2"
Weight: 13,900 lbs
Vertical Spindle Machine Design
Segmented Grinding Wheel
Neutrofier III Magnetic Control
Electro-Matic Magnetic Chuck
Coolant System (Built-In)
