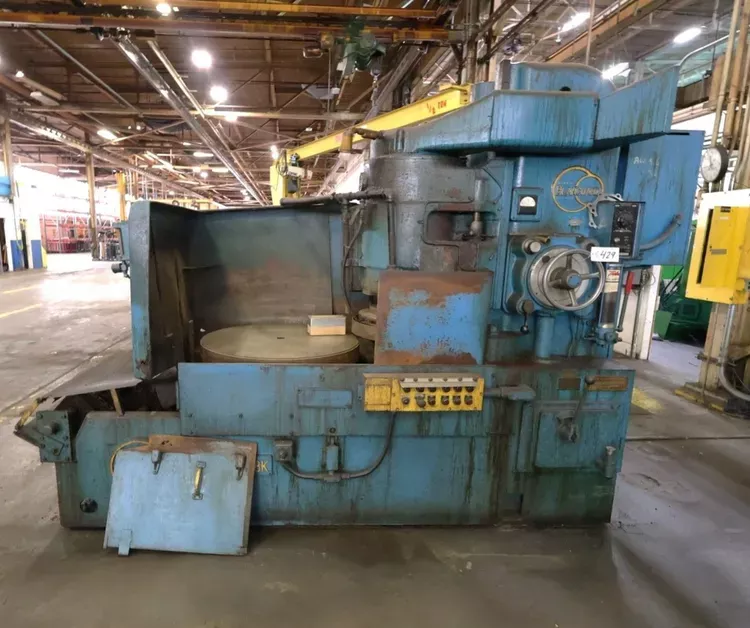

Blanchard 18K-36

Chuck Size 36"
Horizontal/Vertical Vert
Swing 39"
Height Under Wheel 12"
Grinding Wheel Diameter 18"
Dimensions 9'4" x 5'5" x 6'9"
Weight 12,900 LBS
Vertical-spindle machine design
36" diameter electro-magnetic chuck w/Neutrofier
Segmented grinding wheel
Coolant system w/automatic conveyor base for sludge removal
Magnetic chuck work load capacity 3,000 LBS
Grinding wheel speeds, range 720 RPM
Chuck speeds, range 6 to 33 RPM
Power down feeds, range 0.004 to 0.080 IPM
Electrical system 220-440/3/60
Overall dimensions W x D 9'4" x 5'5"
Weight approximately 12,900 LBS
