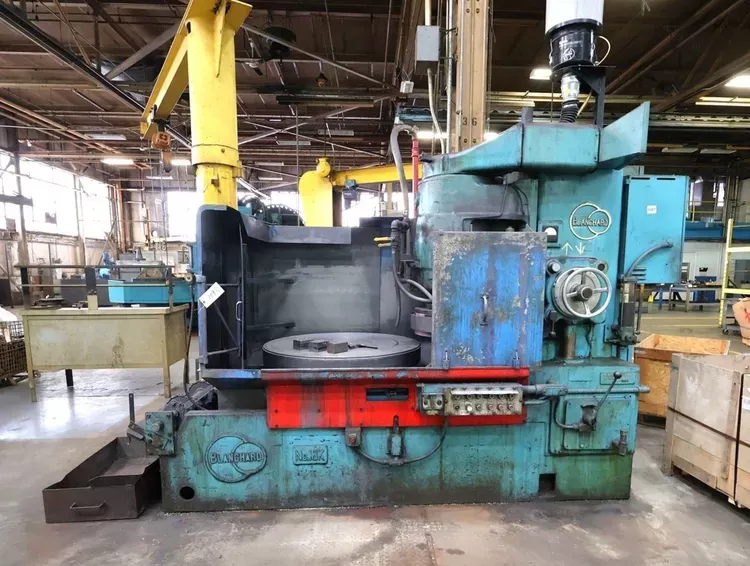

Blanchard 18K-42

Chuck Size: 42"
Horizontal/Vertical: Vertical
Swing: 48"
Height Under Wheel: 10.5"
Dimensions: 9'9" x 5'5"
Weight: 13,900 LBS

Vertical spindle machine design
42" diameter electro-magnetic chuck w/Neutrofier
Segmented grinding wheel
Coolant system with automatic conveyor base for sludge removal
Magnetic Chuck Diameter: 42"
Swing Between Coolant Guards: 48"
Magnetic Chuck Work Load Capacity: 2,000 LBS
Height Under Grinding Wheel, Maximum: 10.5"
Chuck Speeds (6): 6 to 33 RPM
Power Down Feeds (20): 0.004 to 0.076 IPM
Floor Space Required: 9'9" x 5'5"
Overall Height: 8'2"
Weight: ~13,900 LBS
