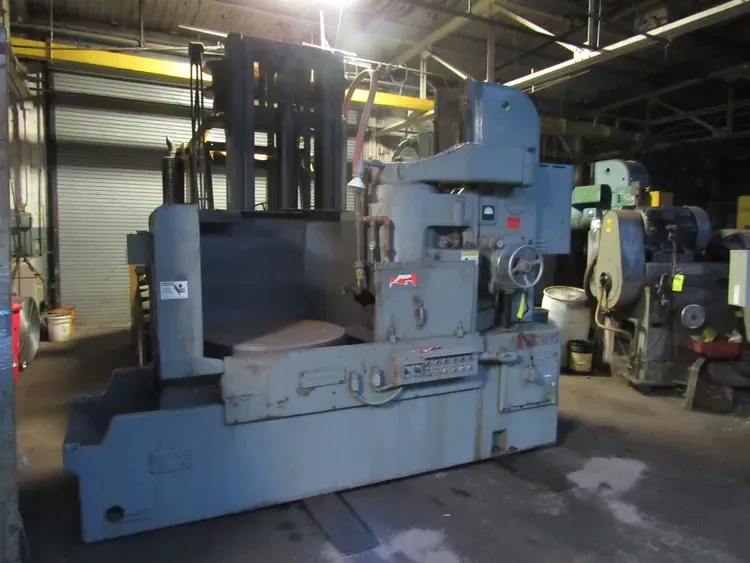

Blanchard 20-36

Chuck size 36"
Size capacity 38" × 18"
Orientation Vertical
Power 50 HP
Swing 38"
Under wheel 18"
Grinding wheel diameter 20"
Grinding wheel width 5"
Magnetic chuck, 36" dia., 5/8" radial pole spacing
Chuck center hole 2"
Maximum work load 3,000 lbs
Cylinder wheel holder 20" × 5" × 16.5"
Segmented wheel holder Courtland type, 4 CD 18L segments
Wheel speed 720 RPM @ 60 Hz, 750 RPM @ 50 Hz
Chuck speeds 6, 9, 12, 18, 25, 33 RPM
Chuck rotation motor 2 HP
Auxiliary torque motors 20 lb.-ft., 900 RPM for table traverse and wheel head
Vertical feed hand or power, 0.004 – 0.080" per minute
Automatic down feed stop
Rapid power wheel head raising and lowering
Wet base coolant tank 125 gallons
Jog push button for table rotation
Work light over table
Quick acting coolant valves and wash hose
Outside chuck ring
Built-in wheel dresser
Reduced voltage push button controls
Steel control panel cabinet with starters and thermal overload protection
Hardened steel base ways with automatic lubrication
Manual pull Trabon lube system
Internal coolant
Load monitor
Floor space length 11'5", width 5'7" including control cabinet
Minimum height 7'11", maximum height 8'4"
Height of chuck from floor 36"
