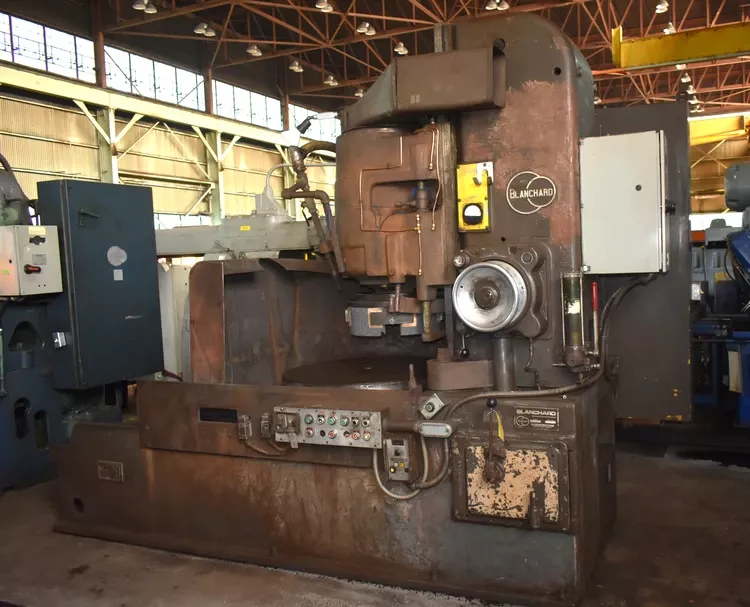

Blanchard 20-36

Chuck Size: 36"
Vertical/Horizontal: Vertical
Swing Between Coolant Guards: 38"
Height Under Wheel, Maximum: 24"
Grinding Wheel Diameter, Maximum: 20"
Grinding Wheel Width, Maximum: 5"
Grinding Wheel Hole Diameter: 16.5"
Chuck Work Load Capacity: 3,000 lbs
Chuck Speeds: 6 to 33 RPM
Power Down Feeds: .004 to .080 IPM
Spindle Motor: 30 HP
Chuck Motor: 2 HP
Electrical System: 220-440 V / 3 Phase / 60 Hz
Floor Space: 11'8" x 8'4"
Overall Height: 10'10"
Weight: 15,000 lbs
24" Extended Height Under Grinding Wheel
Extended Bed Allowing For Easier Loading & Unloading
Vertical Spindle Machine Design
Segmented Grinding Wheel
Electro-Matic Neutrifier II Chuck Controls
Hand Operated Trabon Lubrication System
