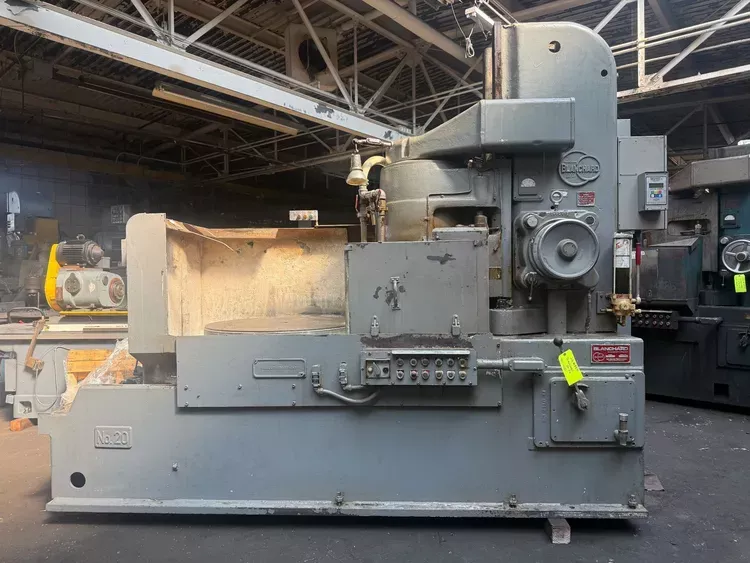

Blanchard 20CD-36

Swing: 38"
Chuck size: 36"
Chuck speed: 6, 9, 12, 18, 25, 33 RPM
Vertical travel: 16"
Grinding wheel diameter: 20"
Grinding wheel width: 5"
Grinding wheel speed: 720 RPM (60 Hz), 750 RPM (50 Hz)
Wheel motor power: 40 HP
Chuck rotation motor: 2 HP
Torque motors (table & wheel head): 20 lb-ft at 900 RPM
Feed rate (automatic downfeed): 0.004–0.080"/min
Max automatic downfeed stop: 0.098"
Workload capacity: 3,000 lbs
Chuck center hole: 2" diameter
Chuck voltage: 115 or 230 V DC (preferred: 230 V)
Chuck power: 792 watts
Magnetic chuck type: steel, one-piece
Coolant system: built into base
Lubrication: manual pull Trabon lube, Bijur lube system
Control: reduced voltage push button
Electrical: attached steel cabinet
Grinding system: solid wheel
Dresser: built into head
Neutrofier II/Rectifier: included
Top plate: ½"
Machine dimensions (L×W×H): 11'5" × 5'7" × max 8'4"
Minimum height: 7'11"
Height of chuck surface: 36"
Machine weight: 18,000 lbs
Manual: operator's manual included
