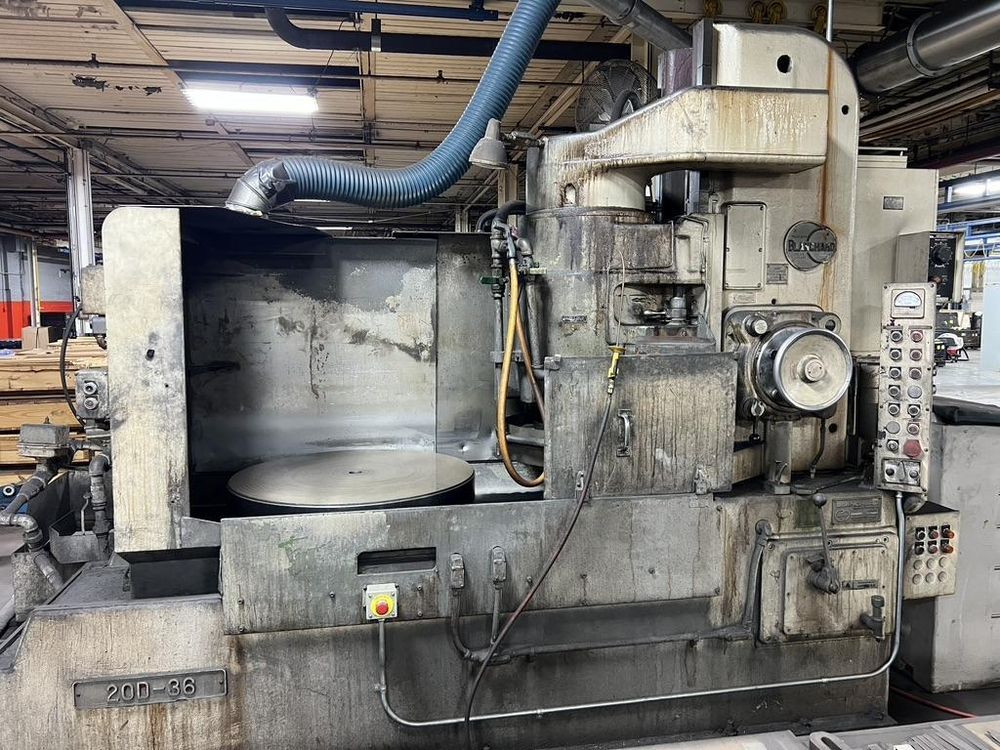

Blanchard 20D-36

BLANCHARD 20D-36
1978

MAGNETIC CHUCK DIAMETER............. 36"
MAX. SWING INSIDE WATER GUARDS...... 38"
VERT. RANGE OVER CHUCK W/NEW WHEEL.. 24"
DIAMETER OF WHEEL CHUCK............. 20"
WHEEL SPEED......................... 720 RPM
RANGE OF CHUCK SPEEDS (6)........... 6,9,12,18,25 & 33 RPM
MOTOR............................... 50 HP
ELECTRICS........................... 460 VOLTS 3 PH/60 CYCLE AC
WEIGHT (APPROX.).................... 13,000 LBS.

EQUIPPED WITH:
POLYCLON PAPER FILTRATION/COOLANT SYSTEM
EXTRA WHEELS AND HUBS
TABLE TRAVERSE
HEAD RAISING
ELECTRICAL CONTROL CABINET
LOAD METER
WHEEL DRESSER
VARIABLE ELECTRO-MATIC NEUTROFIER
20" SEGMENTED WHEEL CHUCK
HARDENED BASE WAYS
TRABON LUBRICATION SYSTEM
