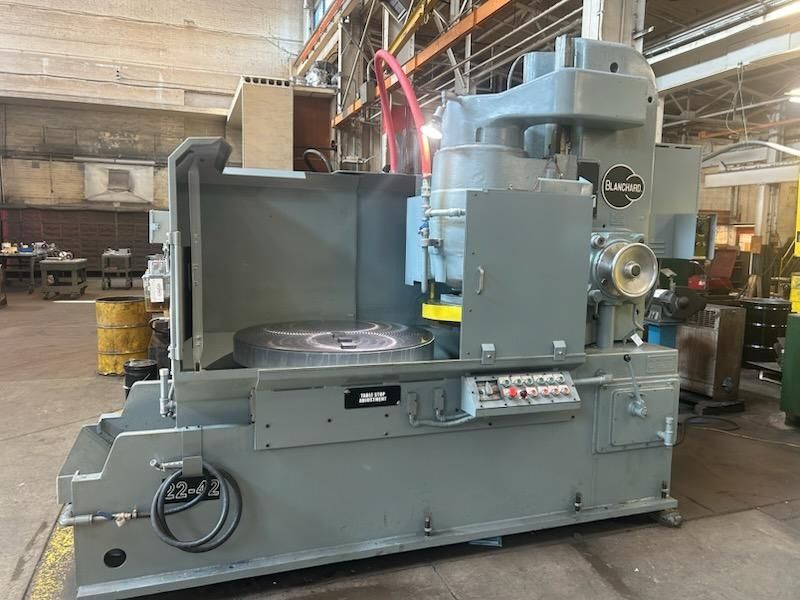

Blanchard 22-42 Vertical Spindle Rotary Surface Grinder

Magnetic Chuck Diameter: 42"
Approx. Chuck Life: 1/2"
Wheel Diameter: 22"
Wheel Style: Segmented
Vertical Travel: 18"
Chuck Speeds: 6, 9, 12, 18, 25, 33 RPM
Feed Rate: 0.004 - 0.080 IPM
Motor Power: 50 HP, 3 Phase, 60 Cycle, 480V
Floor Space: 129"L x 60"W
Height Minimum: 7'1"
Height Maximum: 8'2"
Approx. Weight: 14,500 lbs
Installed New Grease Lube Pump
Upgraded Electrical Panel for Lube System
Added Light to Hood
New Load Meter
Replaced Electrical Conduit
Upgraded Electrical Boxes for Conduit
All New Lube Lines
Rebuilt Main Spindle Complete
Remove & Adjust Upper Feed Box
Inspected and Cleaned Saddle Transmission
All New Coolant Lines and Ross Valve
New Coolant Pump
New Lube Pump for Saddle
New Machine Ways
Hand Scrape Saddle to Ways
Hand Scrape Table to Magnet
Rebuilt Pinion & Bevel Gear Set for Saddle
Reworked & Replaced Some Water Guards
Repaired Dresser Arm Assembly
New Leveling Pads
Cleaned & Painted
Tram Head to Table
8 Hour Test Run
Grind Flat Parts
