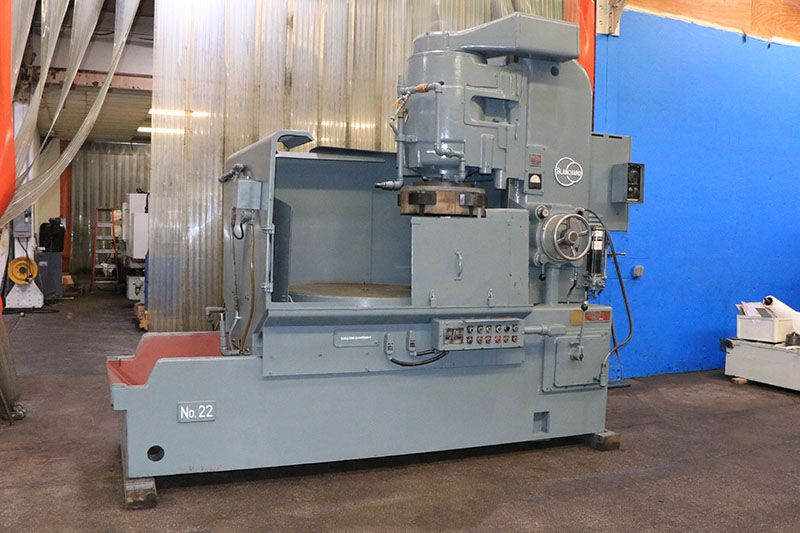

Blanchard 22-42

Chuck Diameter: 42″
Swing Inside Guards: 48″
Vertical Range Under New Wheel: 24″
Maximum Load on Chuck: 3,000 lbs

Grinding Wheel Diameter: 22″
Grinding Wheel Speed: 720 RPM
Chuck Speeds: 6 to 33 RPM
Infinitely Variable Power Downfeed: 0.004″ to 0.080″

Spindle Motor: 50 HP, 3/60/230-460V
Bed Ways: Hardened & Replaceable
Lubrication: Trabon Manual Pump
Wet Base with Self-Contained Coolant System
Electro-Magnetic Chuck, 3/8″ Chuck Life
“Electro-Matic” Neutrofier Control, 1500 W Power Supply
Wheelhead Rapid Raise & Lower by Power, Interlocked with Feed

Approximate Dimensions (LxWxH): 12′ x 8′4″ x 102″
Approximate Weight: 15,000 lbs
Extra Vertical Range: 24″ Capacity
