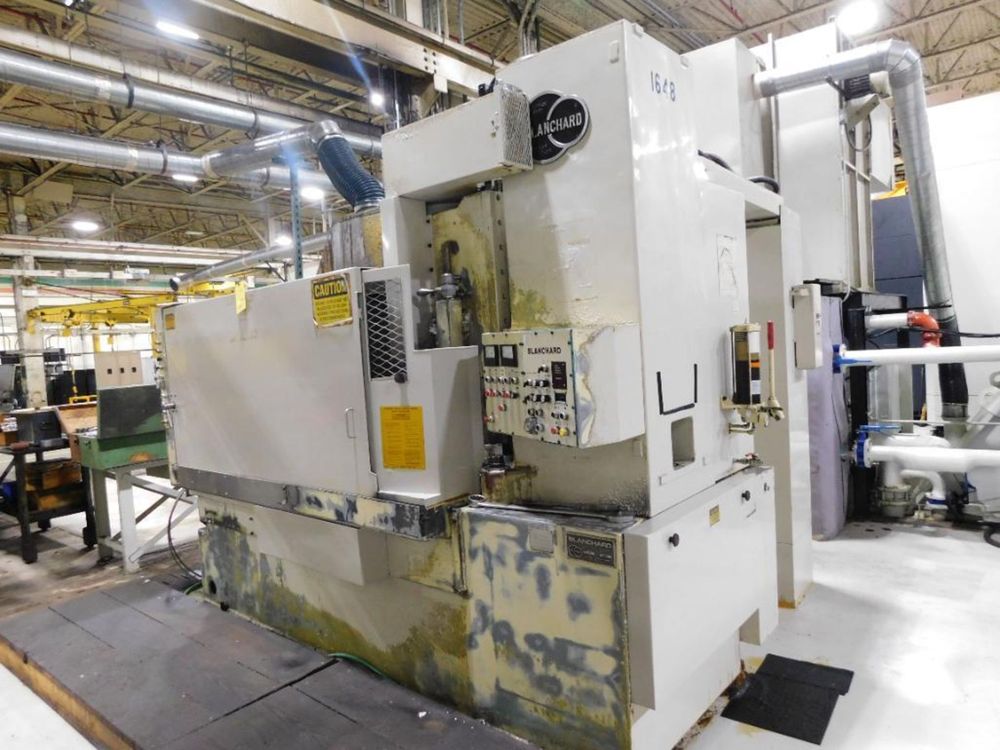

Blanchard 22AD-42

Blanchard 22AD-42
Year: 1995

42" electro-magnetic chuck
48" swing inside guards
24" vertical range under new wheel
3,000 lbs maximum load capacity
22" diameter grinding wheel
720 RPM grinding wheel speed
6 to 24 RPM chuck speeds

20 IPM rapid traverse rate
0.100 IPM wheelhead jog rate
0.001" to 0.100" IPM coarse feed
Continuous/impulse feed modes
0.001" to 0.010" IPM fine feed
0 to 0.009" coarse-to-fine changeover
0.1 to 10 minutes sparkout timer
124"L x 100"W x 115"H dimensions
16,000 lbs machine weight

Programmable auto-cycle control
All-electric "A" series drives
Hardened replaceable base ways
50 HP 3-phase spindle motor
Infinitely variable hold neutrofier
Barnes MPE-25 coolant system
Paper filtration & magnetic separator
Currently wired for 460V/90 FLA
