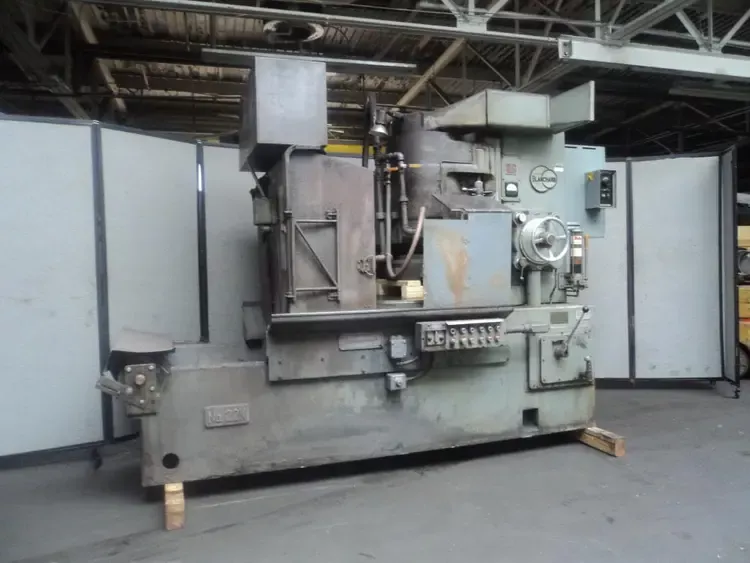

Blanchard 22K-42

Swing diameter: 48"
Vertical capacity: 20"
Magnetic chuck diameter: 42"
Magnetic chuck power: 1200 watts
Chuck voltage: 230V (standard), 115V (special), DC
Maximum chuck load: 3000 lbs
Chuck segments: 5 (11 1/4" x 2 1/4" x 6")
Spindle motor power: 40 HP
Spindle speed: 720 RPM (60 Hz), 750 RPM (60 Hz)
Spindle speed range (50 Hz): 5, 7, 10, 15, 20, 27 RPM
Chuck rotation speed: 1200 RPM
Table traverse/head raise motor speed: 900 RPM
Coolant tank capacity: 125 gallons
Height wheel to chuck: 20"
Segmented chuck: 22" with 11-piece segments
Magnetic chuck top plate thickness: 5/8"
Wet base with drag-out system
Wheel dresser
Load meter
Safety guards
Machine footprint: 11'11" x 8'4"
Maximum height: 9'1"
Minimum height: 8'7"
Machine weight: 19,000 lbs
Voltage: 220/440 V
