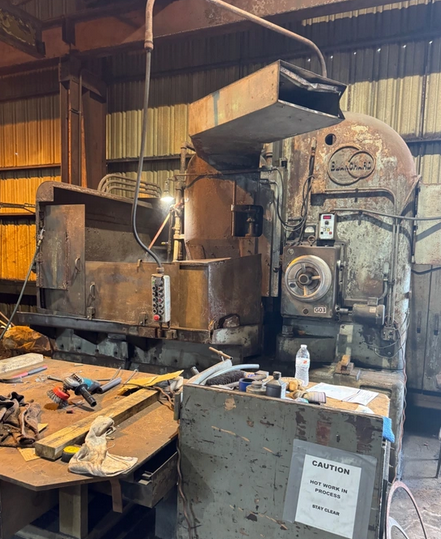

Blanchard 32-60

BLANCHARD 32-60

Chuck Diameter: 60"
Swing Inside Guards: 64"
Height Under New Wheel: 24"
Max Weight of Work Load on Chuck: 10,000 lbs
Grinding Wheel Diameter: 32"
Wheel Speed: 500 RPM
Chuck Speeds (6): 5.6, 8.7, 12.9, 20.7 RPM
Infinitely Variable Power Downfeed: 0.004" to 0.080" IPM
Motor: 100 HP
Approximate Weight: 36,000 lbs

Electromagnetic Chuck
Variable Chuck Control
Wheel Dresser
Power Traverse
Coolant System
