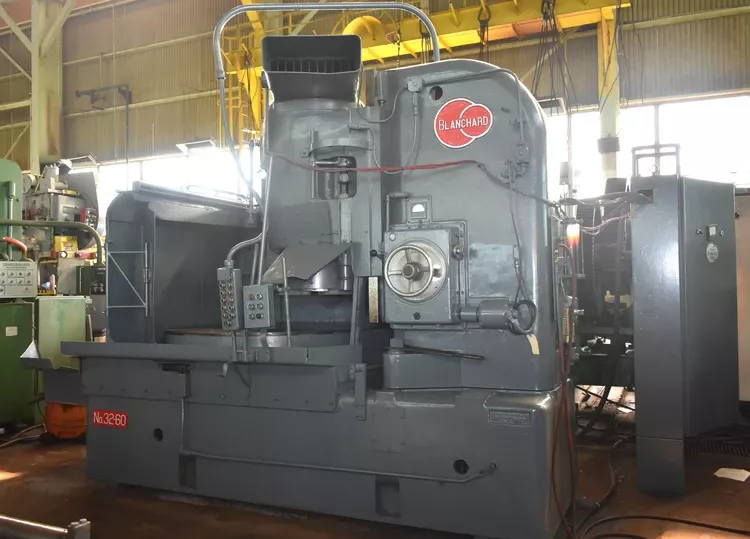

Blanchard 32-60

Magnetic chuck diameter 60 in
Magnetic chuck load capacity 6000 lb
Maximum work height under wheel 24 in
Grinding wheel diameter 32 in
Grinding vertical range 24 in
Grinding wheel speed 514 rpm
Chuck speed range 5.6–20.7 rpm
Power down feed range 0.004–0.080 ipm
Maximum down feed before trip 0.198 in
Spindle motor power 100 hp
Chuck rotation motor power 5 hp
Vertical spindle configuration
60 in magnetic chuck with variable neutralizer
Segmented grinding wheel with 7 segments
Power rapid raise and lower to wheelhead
Trabon lubrication system
Machine length 12 ft 4 in
Machine width 7 ft 1 in
Machine height 10 ft 9 in
Machine weight 34000 lb
