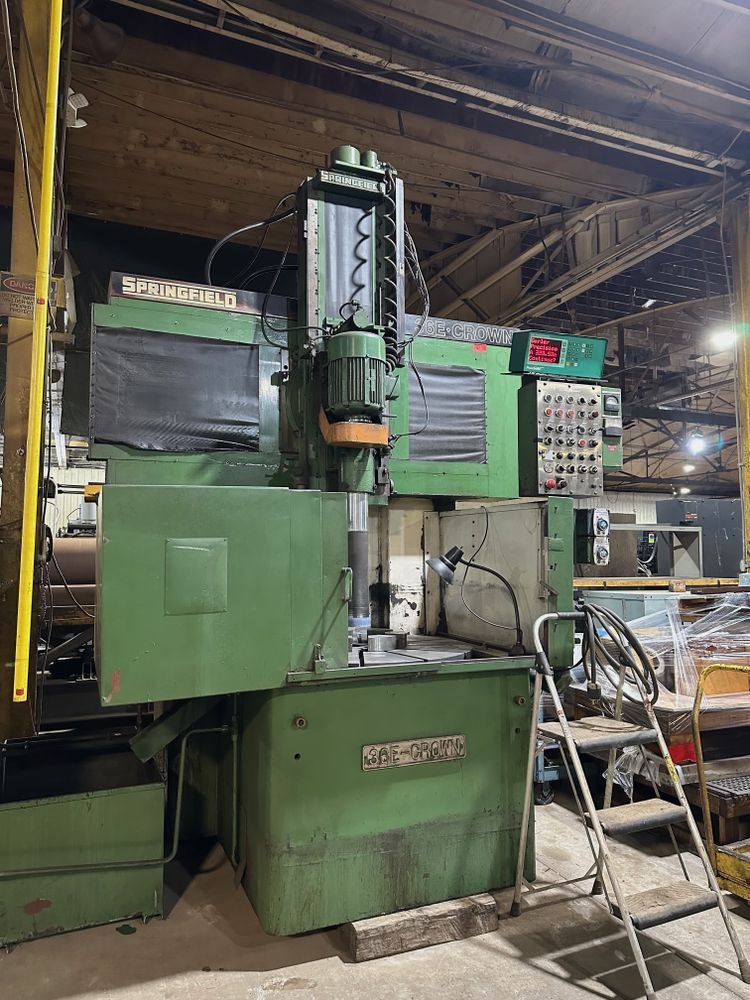

Blanchard 36E CROWN TYPE

SPRINGFIELD 36E CROWN TYPE

Maximum Swing Inside Chuck Guards 44"
Work Table Diameter 36"
Nominal Hole Depth that can be Ground 18"
Stroke of Grinding Head, Maximum 21"
Distance under the Rail 22"
Angle Setting of Head ±45 Degrees
Chuck Speed Range Infinitely Variable 6 to 120 RPM
Grinding Head Stroke Feed 0-80 IPM
Cross Feed Range (IPD) 0.0002 to 0.003
Tarry Period 0 to 14 Seconds
Grinding Wheel Spindle Motor 10 HP
Spindle Speed 8,000 RPM
Approximate Machine Dimensions 89" x 99"
Approximate Machine Height 130"
Approximate Machine Weight 16,500 LBS
Power 440/3/60
Digital Read Out
Coolant System
