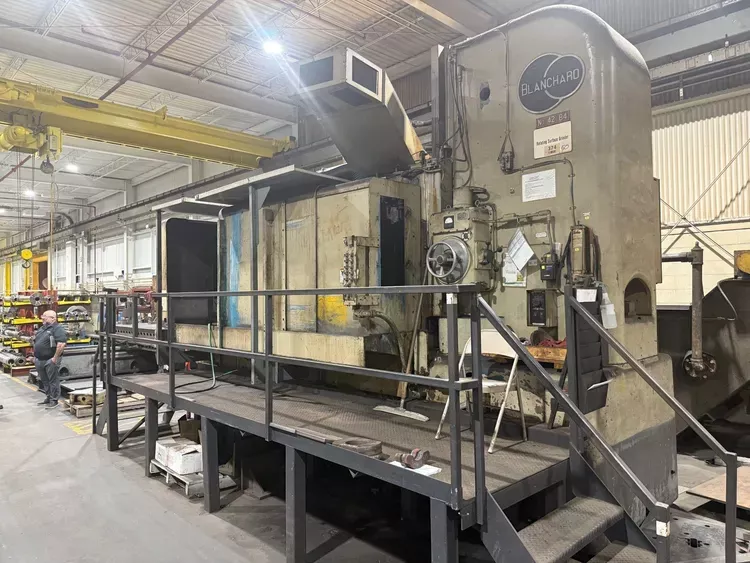

Blanchard 42-84

Chuck diameter 84"
Swing 96"
Vertical range 40"
Table load capacity 22000 lbs
Table speeds 3–11.9 rpm
Power down feed range .004–.080 ipm
Grinding wheel diameter 42"
Spindle motor power 100 hp
Head elevation motor power 7.5 hp
Table rotation motor power 5 hp
Table traverse motor power 7.5 hp
Overall size L×W 20’9” × 9’5”
Overall height 15'
Machine weight 79000 lbs

Machine equipped with
Vertical spindle design
Electro-magnetic chuck with rectifier
Electro-magnetic chuck with neutrofier
Segmented grinding wheel
Extended column height
Rapid rise and lower to wheel head
Lubrication system
Coolant system
Dust collector
