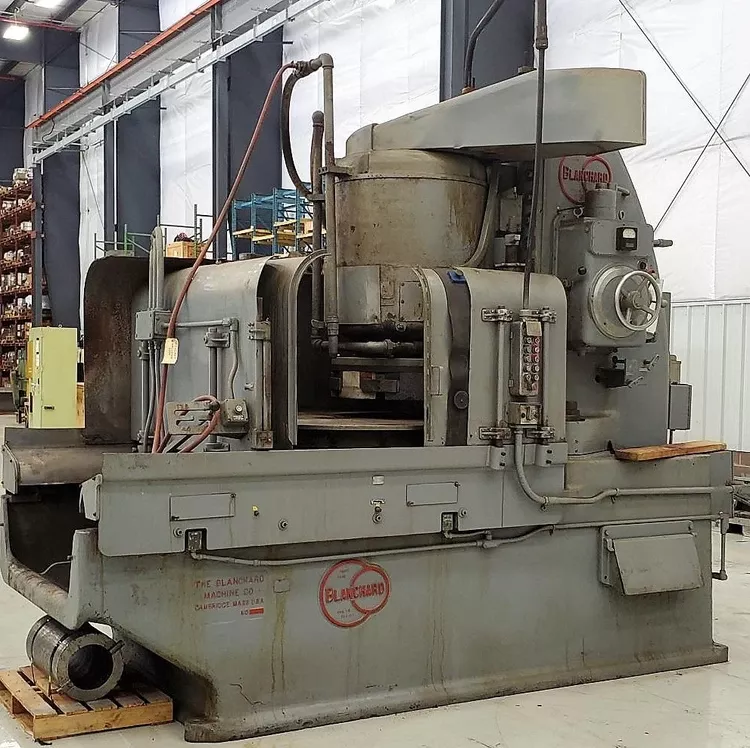

Blanchard 48/60

BLANCHARD 48/60

Table diameter 48"
Chuck extension ring diameter 60"
Grinding wheel diameter 30"
Number of wheel segments 7
Max part height under wheel 24"
Grinding wheel speed 435 RPM
Main motor power 60 HP
Main motor voltage 440 V
Main motor phase 3
Main motor frequency 60 Hz
Wheel head feed rate 0–0.080" per minute
Chuck speed ranges 4.5 / 7 / 7.2 / 17.8 RPM
Chuck control Neutrol with Electro-Matic Rectifier
Coolant delivery inside and outside wheel hub
Coolant in base with pump
Pendent control
Wheel amp meter
Electrical cabinet size 22" x 36" x 83"
Overall machine dimensions 84" W x 160" L x 139" H
Machine weight approx. 45,000 lbs
Magnetic chuck included
Equipment origin bearing company
New bearings installed in 2014
