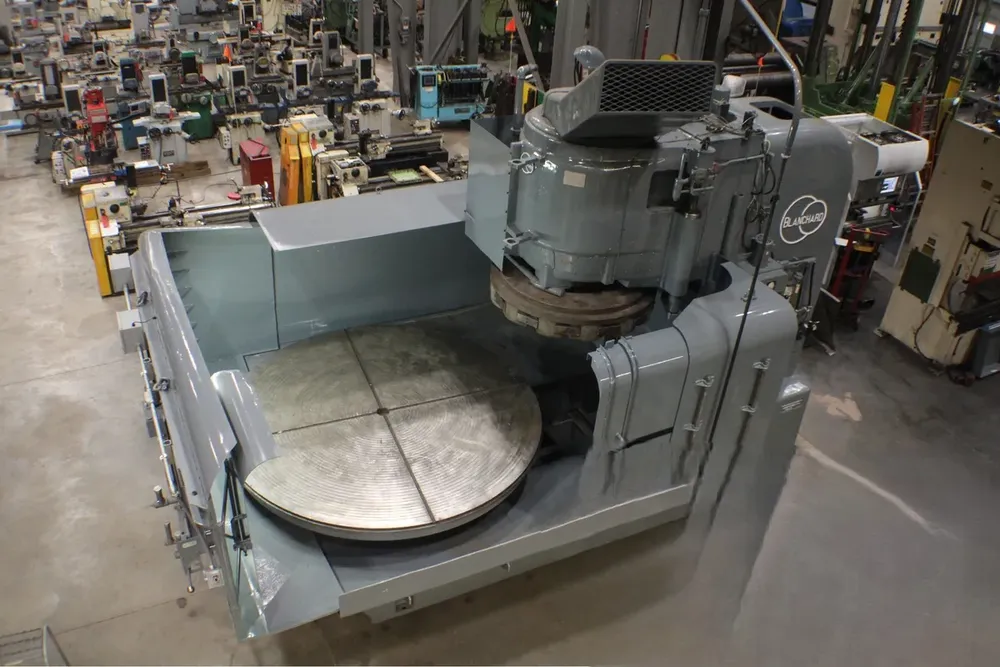

Blanchard 54-100

Chuck size: 100"
Max. height over chuck: 24"
Max. swing diameter: 128"
Swing: 130"
Under wheel: 48"
Max. weight capacity: 30,000 lbs
Chuck pole spacing: 1-1/16"
Center hole: 4"
Grinding wheel diameter: 54"
Chuck segments: 12-CD-54", 11-1/4" x 2-1/4" x 6"
Wheel speed: 270 rpm
Chuck speeds: 2.6 / 4.1 / 6.7 / 10.2 rpm
Chuck motor: 1200 rpm, 60 cycle
Table traverse motor: 1200 rpm, 60 cycle
Head traverse motor: 900 rpm, 60 cycle
Feed motor: 1800 rpm, 60 cycle
Grinding power: 125 HP
Vertical downfeed: 0.004" – 0.080"/min
Max. downfeed before stop: 0.200"
Footprint: 131" x 218"
Weight: 92,000 lbs
