1/1

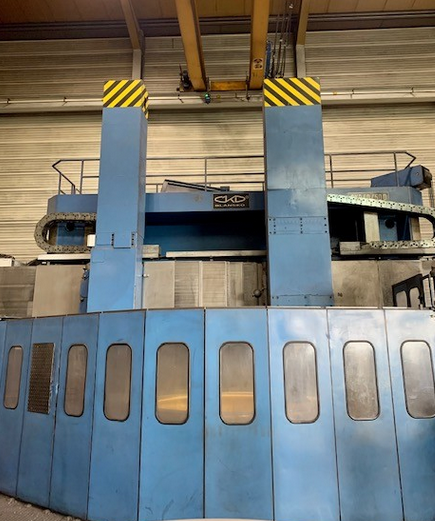

Blansko, CKD SKD Swing diameter 5000 mm
Ref :
2741681-3-MT
Condition :
Used
Manufacturer :
Blansko, CKD
Model :
SKD
Short Description :
Swing diameter 5000 mm
Year(s) :
2008
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Overhauled 2019, completed 2020
C axis speed 0.01–2 rpm
C axis torque at table max 35000 Nm
Control SIEMENS SINUMERIK 840D
Table diameter 4000 mm
Swing diameter 5000 mm
Max workpiece diameter 5000 mm
Max workpiece height 2500 mm
Table load capacity 50 t
Total power requirement 160 kVA
Machine weight approx. 74 t
Equipped With:
Automatic tool changer
Pick-up magazine 1 angle head
Angle milling head
Oil cooling unit
Coolant system with paper filter
AC drive for rotating tools
AC drives for X/Z/C/U/W axes
Full enclosure
2-segment round chip conveyor around table
Hinged belt conveyor
Documentation
