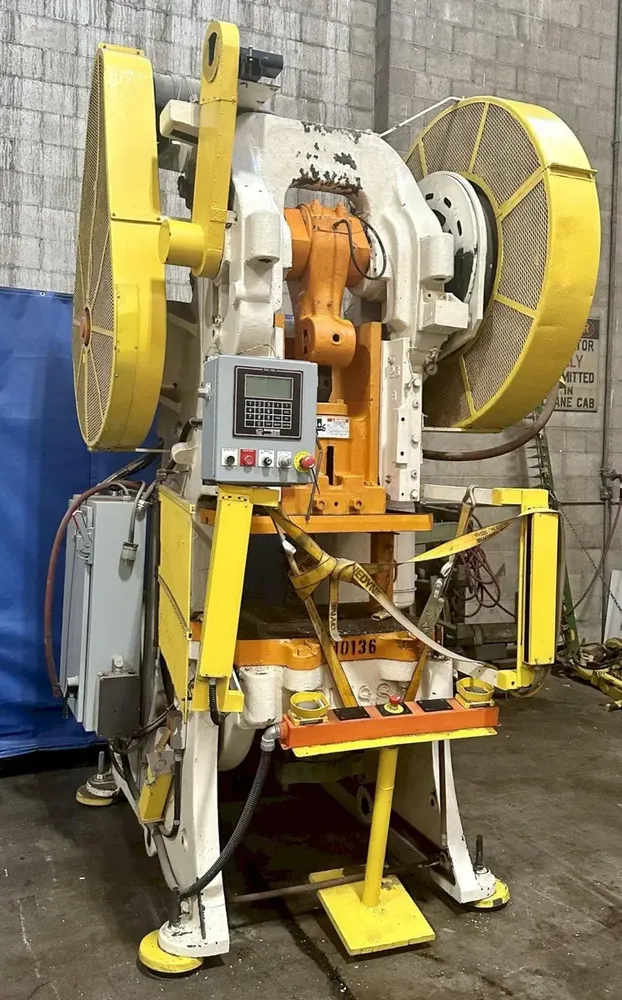

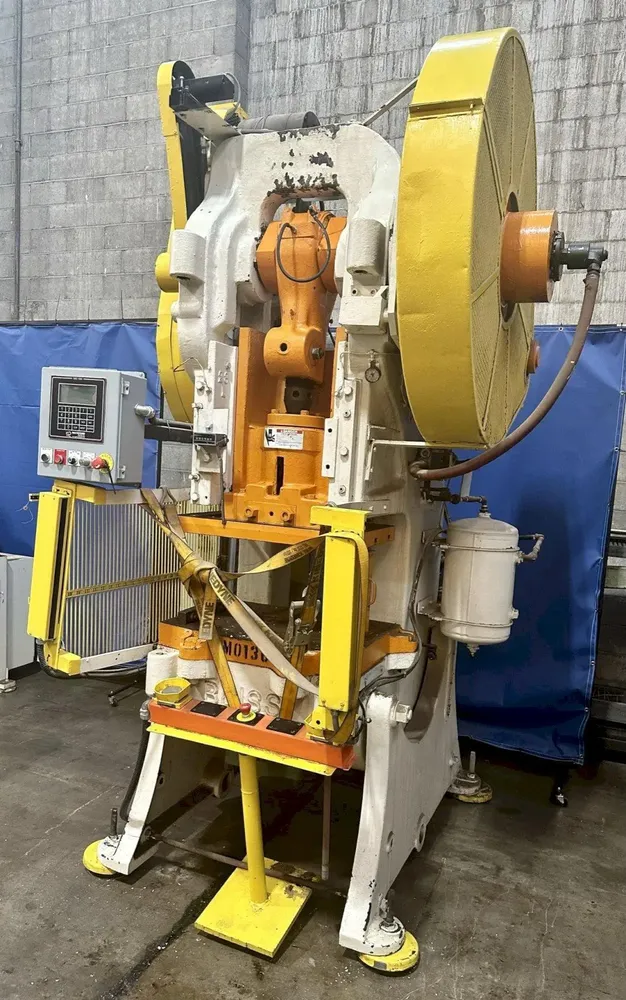

Bliss 23 M 75 ton

Press force: 75 ton
Stroke length: 4"
Shut height: 14.25"
Ram adjustment: 3"
Strokes per minute: 45 – 90 spm
Ram area L-R: 16"
Ram area F-B: 10"
Bolster area L-R: 24"
Bolster area F-B: 32"
Distance between uprights: 14-3/4"
Floor to bed: 35-1/4"

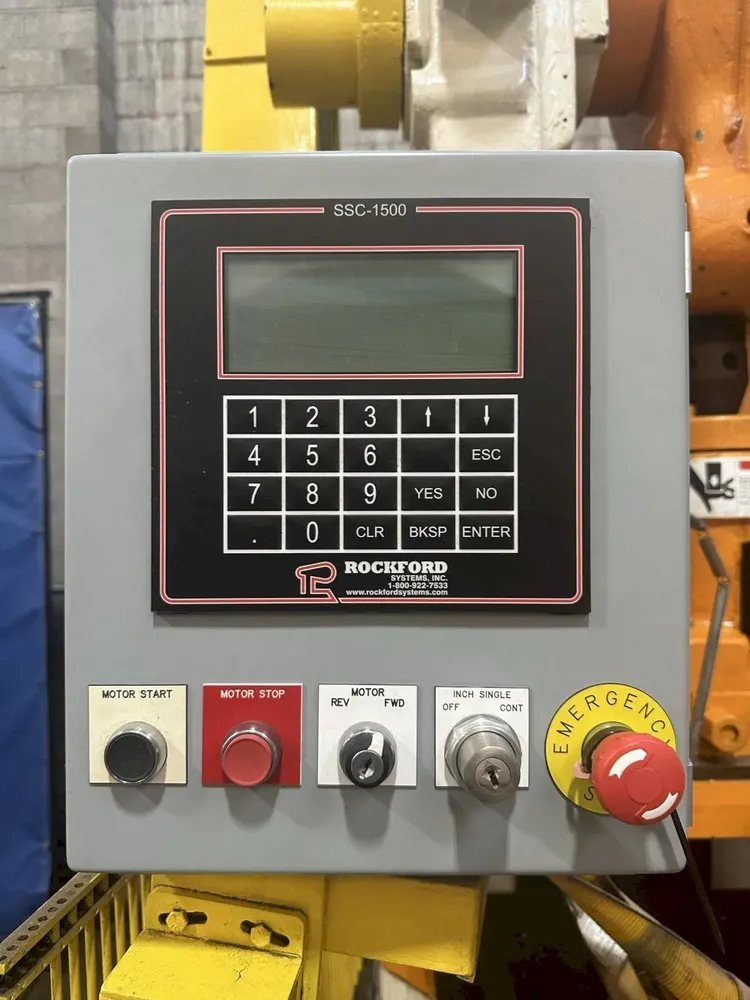

Control system: Rockford PLC (2011 retrofit)
Backgeared drive

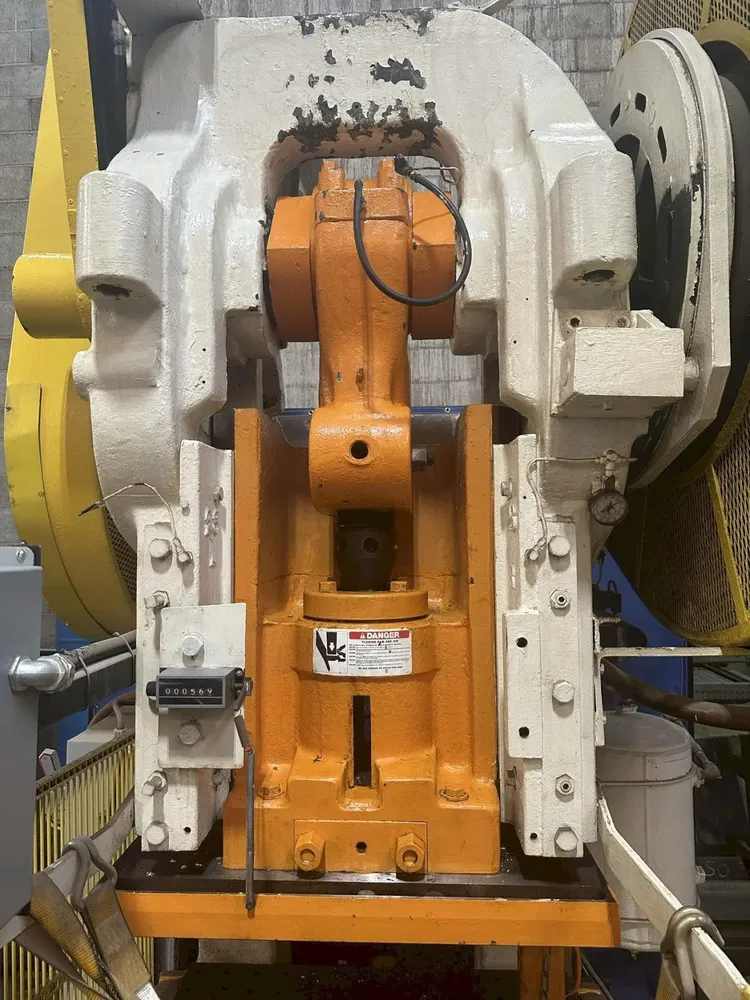

Single crank
Air clutch and brake

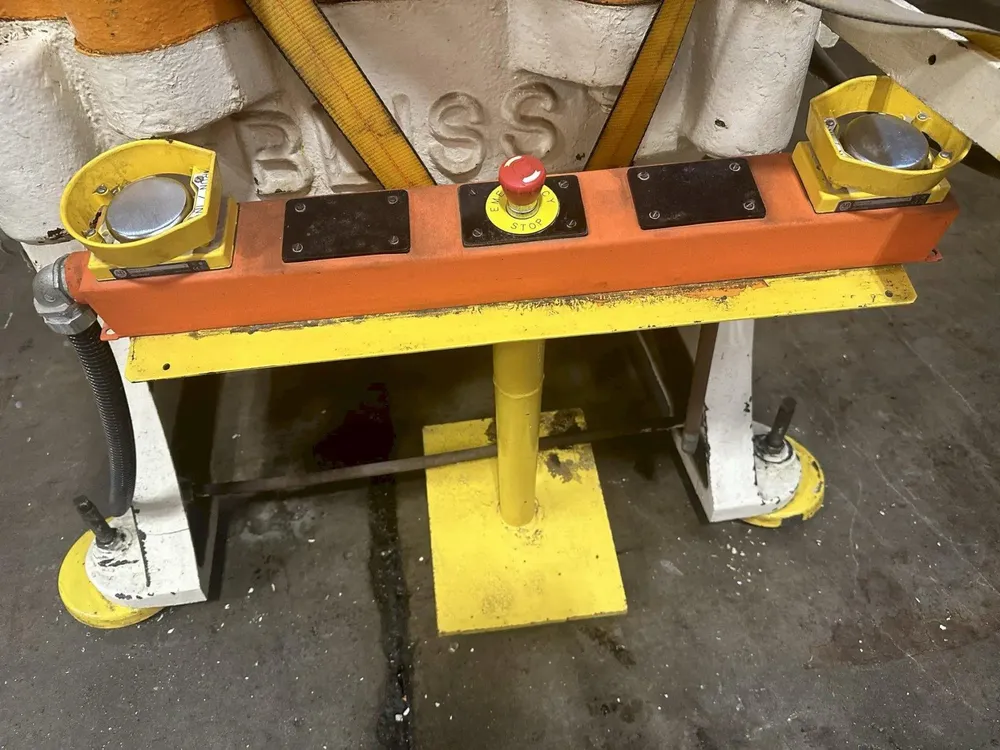

Dual palm buttons
Light curtains
Motor power: 5 hp
Electrical: 240 / 480 V / 3 phase / 60 Hz

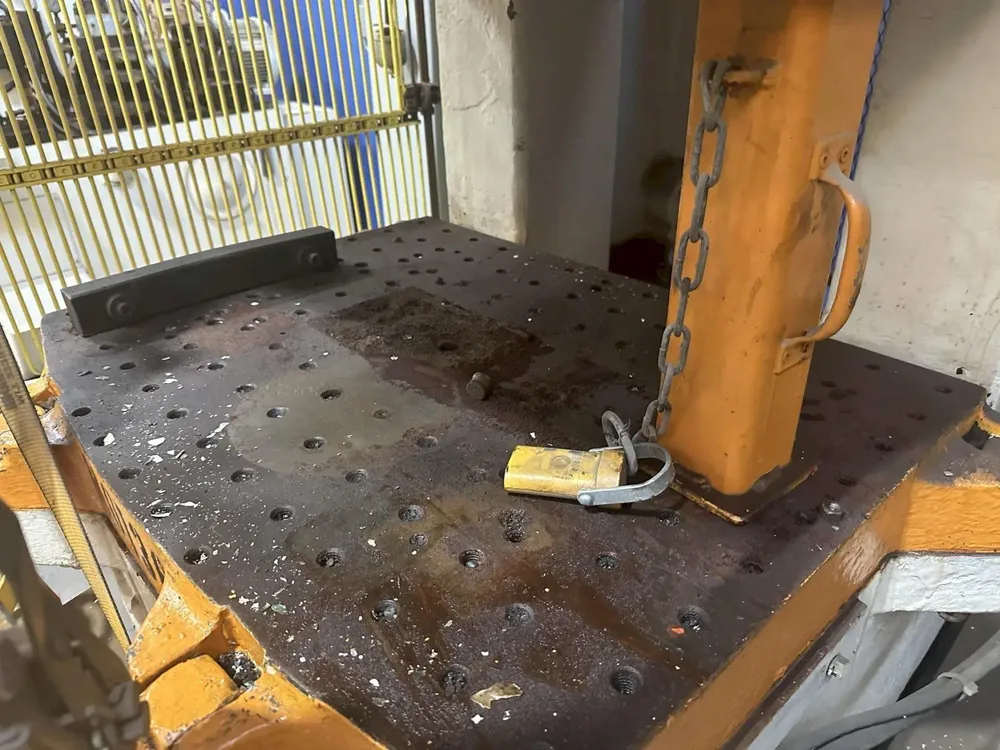

Bolster plate thickness: 3-1/2"
Bolster plate: T-slotted
Machine dimensions: 65" x 84" x 112"
Machine weight: 15300 lb
