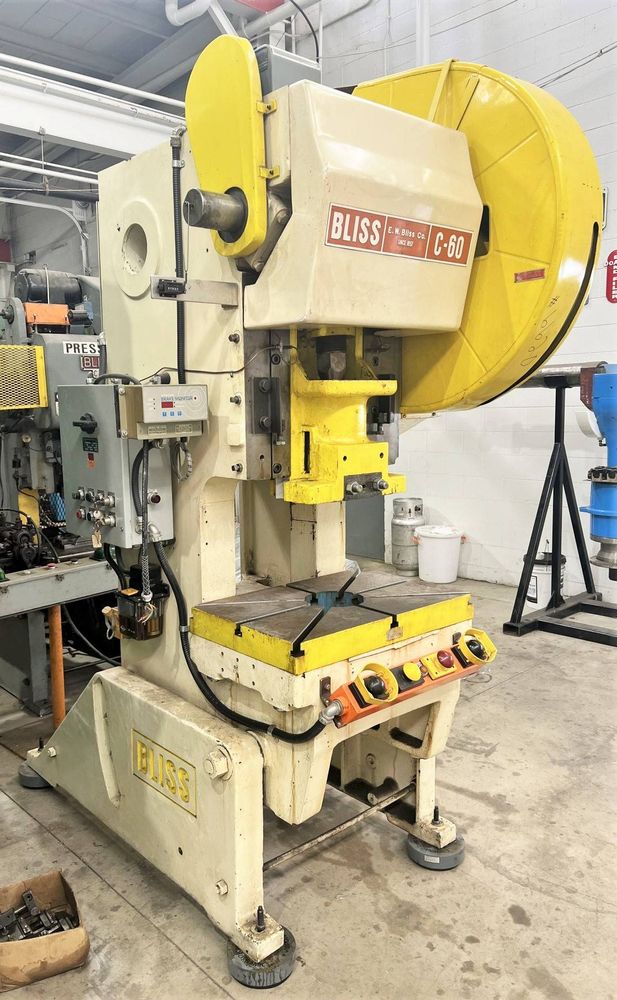

Bliss C-60 Press 60 TONS

Bliss C-60 Press
Year: 1970

CAPACITY 60 TONS
STROKE 4″
MAX. SHUT HEIGHT TO BED 15.75″
BED AREA 32″ X 20.5″ (RL X FB)
BOLSTER PLATE SIZE 32″ X 20.5″ (RL X FB) X 3.5″ THICK (7.75″ DIA. HOLE IN CENTER)
RAM / SLIDE AREA 17″ X 12.5″ (RL X FB)
RAM / SLIDE ADJUSTMENT 3″

SPEED APPROX. 100 SPM
THROAT DEPTH 11.25″
DISTANCE BETWEEN UPRIGHTS 14.8″
FLOOR TO BED HEIGHT 35.5″

CLUTCH BLISS AIR CLUTCH AND BRAKE COMBINATION
PRESS CONTROLS UPDATED DOMINION CONTROLS WITH SIEMENS RELAY LOGIC CONTROLLER
ELECTRIC MOTOR 5 HP 575V-3-60 LOUIS ALLIS MOTOR | 7.2 AMPS
APPROX. DIMENSIONS 68″ X 85″ (RL X FB) X 112″ HIGH
APPROX. WEIGHT 11,500 LBS.

Equipped With
cast iron frame, FLOOR STANDING, DIRECT DRIVE, inclinable
