Bliss C-60 Press Year: 60 TON

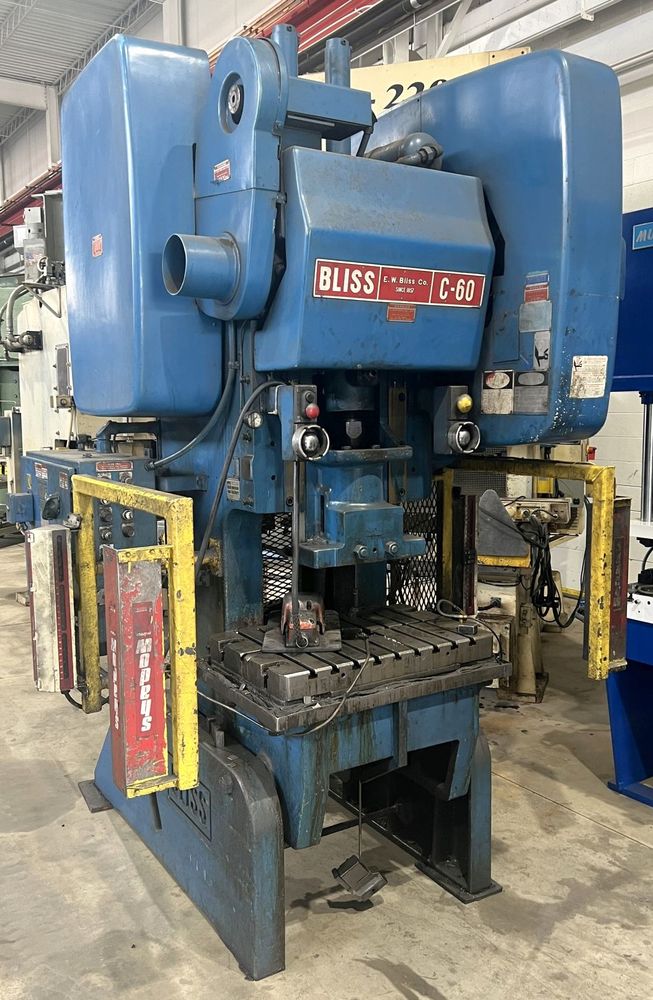

Bliss C-60 Press
Year: 1989

CAPACITY 60 TON
STROKE 4″
MAX SHUT HEIGHT TO BED 14.25″ SDAU
BED AREA 32″ X 21″ (RL X FB)
SPEED 45 SPM
SLIDE ADJUSTMENT 3″ MANUAL
SLIDE AREA 17″ X 12.25″ (RL X FB)
BOLSTER PLATE APPROX. 32″ X 21″ (RL X FB) X 2″ THICK
DISTANCE BETWEEN UPRIGHTS 15″
FLOOR TO BED 35″
CLUTCH BLISS AIR CLUTCH / BRAKE COMBINATION
ELECTRICS 7.5 HP 460V-3-60 MOTOR & BLISS RELAY PRESS CONTROL
APPROX DIMENSIONS 60″ X 84″ (RL X FB) X 116″ HIGH
APPROX WEIGHT 12,000 LBS

Equipped With
FLOOR STANDING, INCLINABLE, CAST IRON FRAME (2)
3″ DIA. COUNTERBALANCE CYLINDERS
