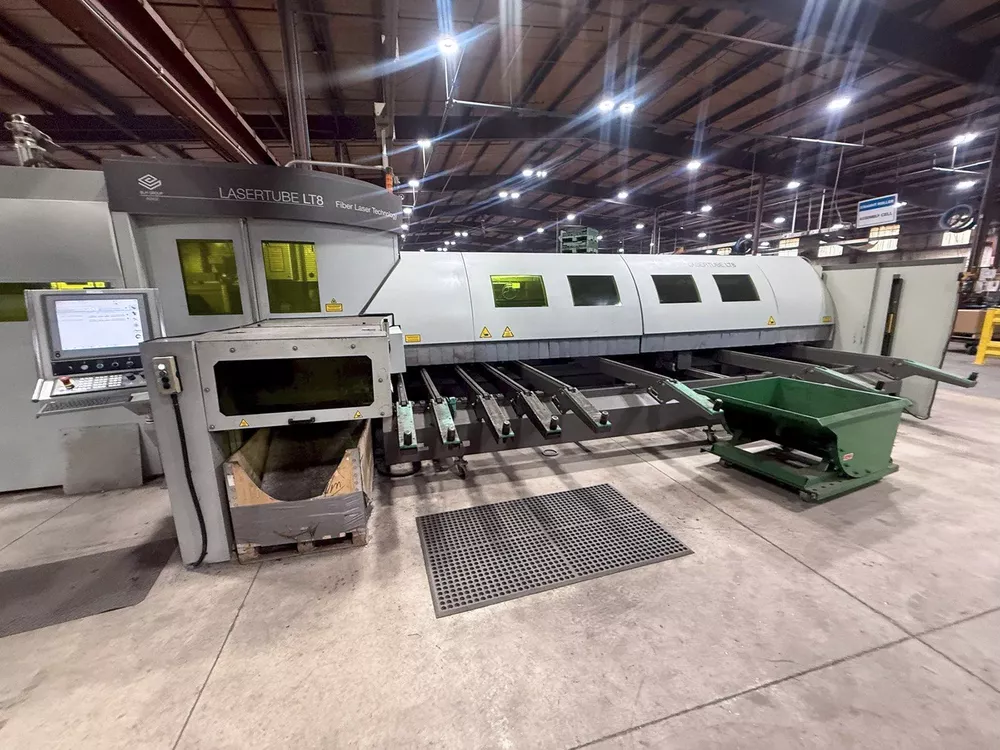

BLM LT8 2D Fiber Tube Laser Siemens Simatic

Technical Data

Controller: Siemens Simatic
Laser Power: IPG YLS 3000 Watt Fiber Resonator
Round Tube Diameter: 0.50” – 8.625”
Square Tube Size: 0.50” – 8.0”
Rectangular Tube Width: 0.50” – 8.0”
Bar Load Size: 28’
Min. Bar Load Length (Auto Bundle Loader): 8.2'
Bar Unload Size: 21”
Max. Bundle Weight: 8,800 lbs.
Max. Bar Weight (At full duty cycle): 25 lbs./foot
Cutting Head: HPSSL (2D)
Open Shapes Capability: Processing Angle Iron, Channel, Flat Bar
Booster Pierce / Breakthrough Detector: Standard
Weld Seam Detection: Standard
Tube Twist & Bow Correction: Standard

Equipped With

HPSSL 2D Cutting Head
Active Piercing
Optical Weld Seam Detector
Spoon (Clean Tube Technology)
Rear Bundle Loader
Front Single Bar Loader
3kW IPG YLS Fiber Laser
Reidel USA Chiller
(2) Sideros ECO4 Dust Collector
(2) On-board Cameras (Internal & Rear of Machine)
Short Parts Belt
Rear Scrap Conveyor
Front Unload Collection Table
Rear Unload Collection Table
