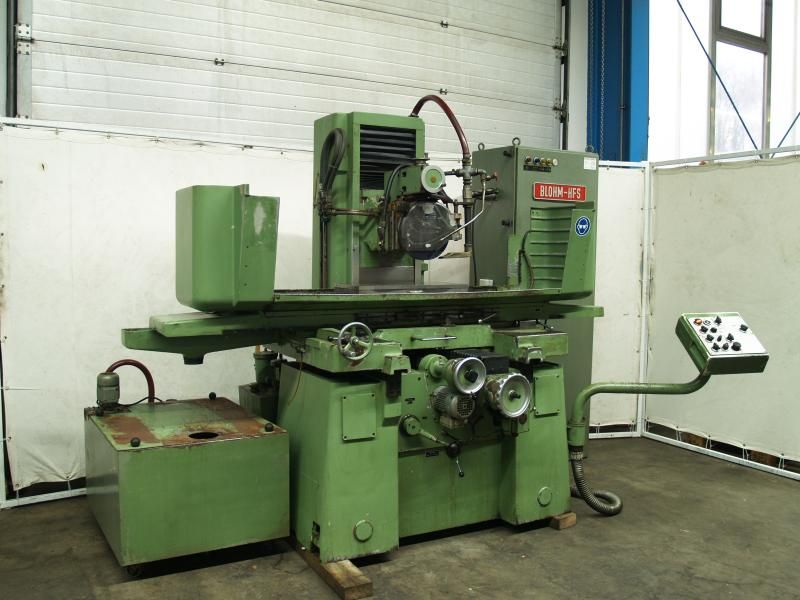

Blohm HFS 6

Electromagnetic Clamping Plate: 600 x 300 mm
Grinding Length: 600 mm
Grinding Width: 400 mm
Table Longitudinal Travel Max: 650 mm
Table Cross Travel Max: 350 mm
Spindle Center to Table Max Distance: 600 mm
Spindle Center to Magnet Plate Max Distance: 517 mm
Table Clamping Surface: 1020 x 300 mm
Grinding Wheel Diameter: 300 mm
Grinding Wheel Width: 50 mm
Grinding Wheel Bore: 76 mm
Table Longitudinal Feed: 2-30 m/min stepless
Table Cross Feed: 2-65 mm stepless, electric
Cross Rapid: 3 m/min
Vertical Feed per Increment: 0.001-0.020 mm
Vertical Rapid: 0.250 m/min
Grinding Wheel Speed: 1400 / 2800 rpm
Hydraulic Pump Motor Power: 2.2 kW
Grinding Spindle Motor Power: 5 / 6 kW
Total Power Requirement: 11 kW
Automatic Depth Feed
Hydraulic Table Longitudinal Movement
Wheel Dresser on Spindle Head
Electromagnetic Plate Height: 83 mm
Coolant System with Magnetic Filter
Spindle Lubrication
Control Cabinet: 800 x 500 mm
Swiveling Control Panel
Operating Manual and Spare Parts Handbook
Machine Footprint: 3000 x 2200 x 2100 mm
Machine Weight: 3000 kg
Control Cabinet Weight: 200 kg
Good Condition
