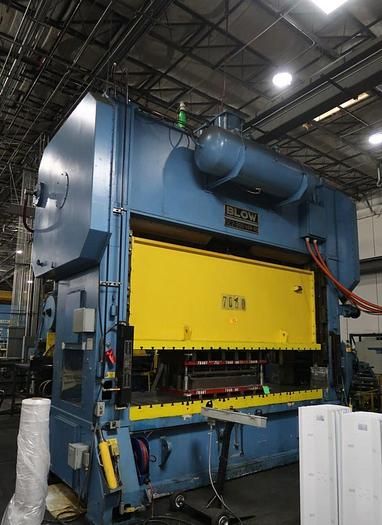

Blow SC2-300-144-48 300 ton

Tonnage capacity: 300 ton
Stroke length: 6"
Shut height over bolster (SDAU): 26"
Slide adjustment (power): 10"
Slide area (L-R x F-B): 144" x 48"
Bed area (L-R x F-B): 144" x 48"
Bolster size (L-R x F-B x thickness): 144" x 48" x 6"
Distance between uprights: 145"
Strokes per minute (variable): 25–50 SPM
Main motor power: 50 HP / 1800 RPM
Slide motor power: 7.5 HP / 1800 RPM
Machine dimensions (W x D): 203.5" x 112.5"
Machine height: 217.75"
Machine weight: 140,000 lbs
Control terminal: OmniLink LCD
Clutch and brake: Air
Counterbalance: Air
Drive: Variable speed
Construction: Tie rod
Ram adjustment: Power
Slide and bolster: T-slotted
Operator control stand: Included
Design: Floor standing
