Blumer Atlas 110 LS

Strip length min./max.: 350 - 1115 mm
Strip width min./max: 45 - 215 mm
Precut label size min: 25x45 mm
Precut label size max.: 170x215 mm
Punched min. size: 20x40 mm
Punched max. size: 166x211 mm
Stack height min./max.: 40 mm / 120 mm
Min. trim per side (punching waste): 2 mm
Intermediate trim cut: 3 - 40 mm
Electrical connection: 400V 3.N.PE 12 kVA
Floor layout of the machine approx.: 5300x4200 mm
Weight approx.: 3000 / 3400 kg

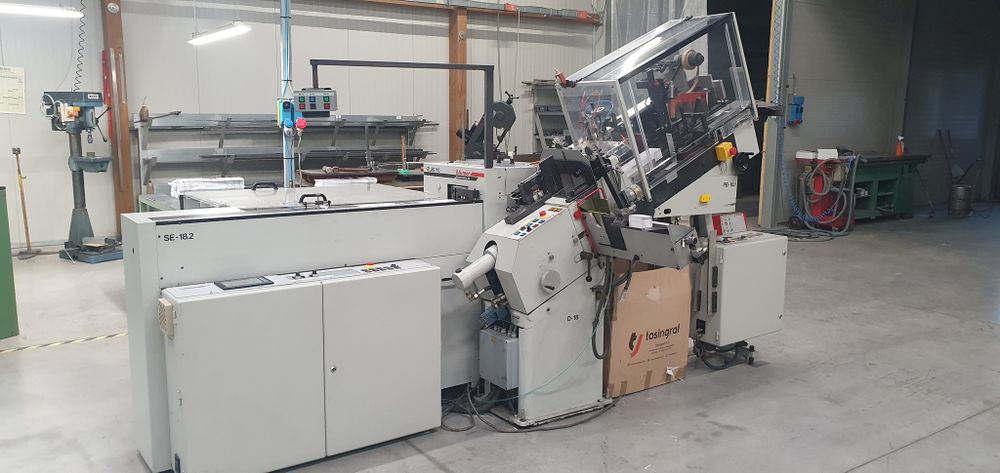

Automatic counter pressure die-cutting / punching machine for labels.
Automatic strip stack loading device mod. PB 18.1 / cross-cutting of strip stack.
Unit mod. ST 18.2 /punching unit mod. D18 / banding unit.
Strip length mm. 350/1150 (min./max.).
Strip width mm. 45/180 (min./max.).
Stack height mm. 30/100 (min./max.).
Pre-cutted Label size of mm. 25x45 to mm. 150x180 (max.).
Punched label size, minimum of mm. 20x40 to mm.145x175.
Minimum die scrap per side mm. 2.
Mechanical speed from 12 to 16 cycle/minute.
New PLC with New Motor and New Software installed by our Engineer in February 2025,
with remote connection for any kind of technical intervention (software copy is available as optional)
New monitor colours touch screen (HMI).
