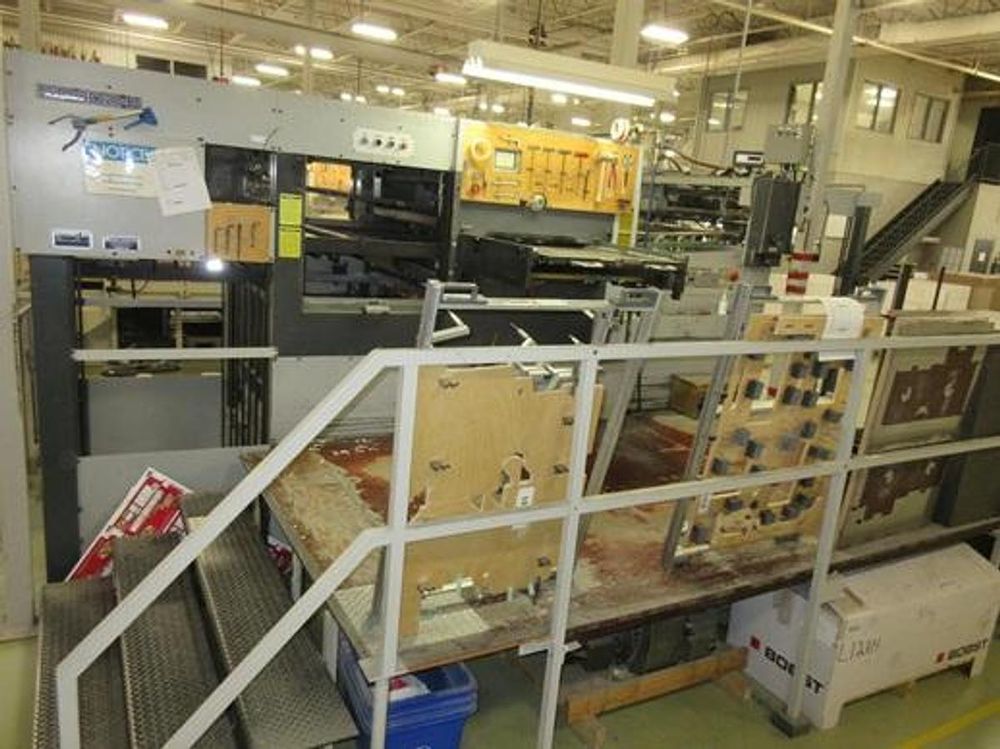

Bobst 102 E

Die cutter
Maximum sheet size : 40 1/8” x 28 3/8” ( 1020 mm x 720 mm )
Minimum sheet size : 15 3⁄4” x 13 3⁄4” ( 400 mm x 350 mm)
Cutting force : 250 ton metric cutting pressure (275 US tons)
Maximum production rate : 7,500 sheets per hour
Convertible stock : .004” to .160” stock
Machine operating hours : 76,605 hours (approx. 35 hours/week)
Machine voltage : 550 V / 3 ph. / 31 Amp.

Equipment details :
• 16” machine elevation
• Non-stop feeder with pre-piling device
• One (1) O.S. (operator side) pull guide
• Four (4) front register lays
• Ten (10) cutting chases
• 3mm, 4mm and 5 mm cutting plates
• Lower supporting plate
• Double action waste stripping station
• One (1) upper stripping pull-out frame
• One (1) lower stripping pull-out frame
• One set of upper stripping equipment including crossbars, pin holders and pins
• One set of lower stripping equipment including crossbars, pin holders and pins
• Non-stop delivery apr
Machine maintained regularly and can be seen in production.
Gripper bars and chains were replaced in 2017.
Machine has ran only one shift since 2017
