Bobst 160 A-Matic and Flexo 160 2 1.600 x 1.100 mm

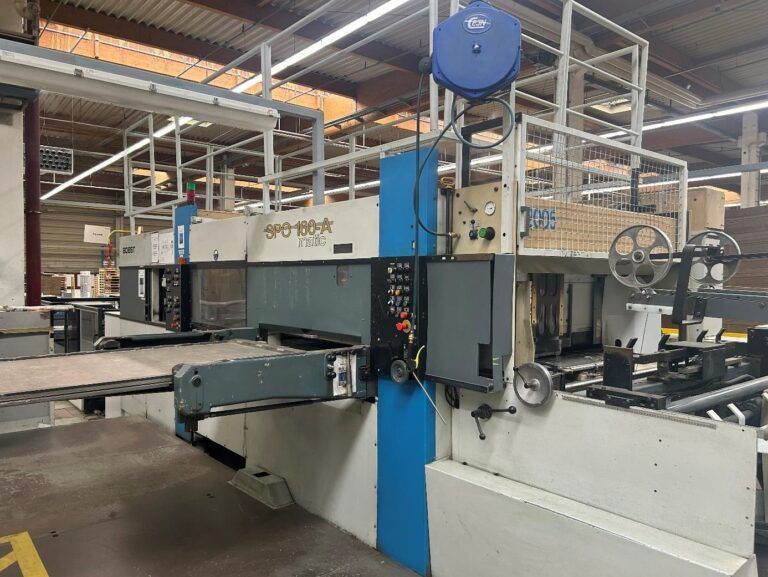

BOBST 160 A-MATIC CUTTING MACHINE
Sheet sizes:
- Maximum cutting size: 1.600 x 1.100 mm
- Minimum cutting size: 600 x 520 mm
Cutting size with front waste:
- Maximum cutting size: 1.600 x 1.075 mm
- Minimum cutting size: 580 x 492 mm

- Gripper margin adjustable: 15 +/- 3 mm
- Thickness of corrugated board up to 9mm
- Thickness of solid board from 1mm
- Cutting force, maximum: (400 tons) 4MN
- Production speed: up to 6.500 sheets per hour

Construction year: 1994
Production country: SWITZERLAND
Voltage: 480 V
Frequency: 50 Hz

2 COLORS UNIT BOBST FLEXO 160
Sheet sizes:
- Maximum cutting size: 1.600 x 1.100 mm
- Minimum cutting size: 600 x 520 mm
- Maximum printing size: 1.600 x 1.100 mm
- Printing diameter: 440mm
Thickness of printing plates:
- Maximum: 8 mm
- Minimum: 3 mm

Diamater of rubber inking roller:
- Maximum: 216 mm
- Minimum: 204 mm
- Thickness of corrugated board up to 9mm
- Thickness of solid board from 1mm
- Production speed: up to 6.700 sheets per hour

Construction year: 1994
Production country : SWITZERLAND
Voltage: 480 V
Frequency: 50 Hz

RODA PREFEEDER FPK 1600
Material characteristics:
- Maximum pile height: 2,000mm
- Maximum pile weight: 1,400kg
- Pile height: 50 - 200mm
- Minimum sheet size: 600 x 400mm
- Maximum sheet size: 1,650 x 1,270mm
- Maximum speed: 9,000 sheets/h
- Regulation height: 50 - 200mm

Technical specifications:
- Machine length: 7. 150mm
- Length of the machine on the ground: 3.450mm
- Width of the machine: 4.000mm
- Height of the machine: 3.750mm
- Weight: 6.300kg
- Minimum height of the feed roller conveyors: 305mm
Electrical connection:
- Installed power: 14Kw
- Electrical voltage: 400V - 50Hz -3PE
- Control voltage: 24VDC
Pneumatic connection:
- Compressed air consumption: 15m³/h at 6 bar
- Connection: 1/2"

PALLMAC 1600 INLINE
Technical data:
- Type: 1600 inline
- Year of manufacture: 1999
- Control voltage: 380/220V - 24 VDC
- Frequency: 50 Hz
- Maximum rated power (Imax): 12 A
- Rated power (In): 9 A
- Connected load: 6 kW
- Air pressure: 6 bar
- Compressed air consumption: 1500l/min

Product data:
- Maximum length: 1. 100 / 800*mm / Minimum: 100*mm
- Width Maximum: 1,600 / 550*mm / Minimum: 200*mm
- Height Maximum: 240mm / Minimum 60mm
* Max. after separation 100mm x 200mm
