Bobst 203 A-Matic

A) Technical Data:
Sheet width (including waste, in running direction): min. 600 mm, max. 2032 mm
Sheet length (including waste, in running direction): min. 520 mm, max. 1270 mm
Max. die-cut format (with front waste): 2032 mm × 1245 mm
Material thickness: 1.0 – 9.0 mm
Gripper margin (adjustable): 15 +3 / -6 mm
Standard side trim: 10 mm each (9 mm with vertical flute, 8 mm with horizontal flute)
Standard rear trim: 10 mm
Max. speed: up to 5,500 sheets/hour (depending on job)
Max. die-cutting force: 550 tons
Die rule height: 23.8 mm
Waste allowance in running direction: 15+10 = 25 mm
Waste allowance across running direction: vertical flute 16 mm, horizontal flute 18 mm

B) Equipment:
Prefeeder Dynaload
Max. pile height (without pallet): 1900 mm
Max. stack weight: 1300 kg

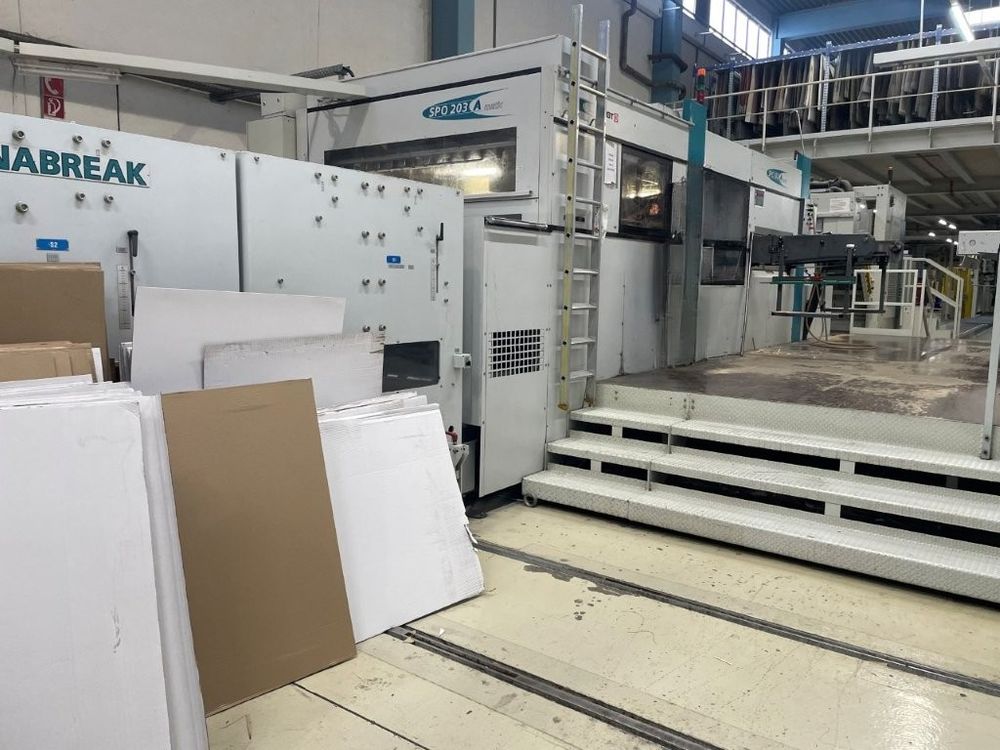

Die-Cutter SPO 203 A-Matic
Tool pre-mounting stand with second chase
Die-cutting tool top, bottom with hard thick counter plate plus 1 mm medium-hard plate
Centerline II system

Blank separator (crosswise to running direction) Dynabreak S1
Variable pile height: min. 50 mm, max. 250 mm
Max. separations: 9 (10 blanks)
Min. separation distance: 150 mm (250 mm)
Trials: up to 6 blanks 140 mm, preferably 150 mm; 7–9 blanks 150 mm, preferably 160 mm

Blank separator (lengthwise to running direction) Dynabreak S2
Variable pile height: min. 50 mm, max. 250 mm
Max. separations: 5 (6 blanks)
Min. separation distance: approx. 150 mm (from trials)

C) Tolerances:
In addition to tolerances from sheet manufacturing (width and length variation) and printing (if applicable),
die-cutting introduces the following tolerances, based on optimal sheet quality.
Strong warping, curvature, or non-square cuts will increase tolerances, especially if they vary within a job.
Best results, including for skip-feed jobs, are achieved with vertical flute running direction.

Tolerance values:
In running direction: ±0.25 mm (vertical flute), ±0.50 mm (horizontal flute)
Side tolerance (crosswise): ±0.75 mm (vertical flute), ±0.75 mm (horizontal flute)

Conditions for tolerances to apply:
Machine and tooling manufactured according to BOBST-ABC
Machine maintenance per BOBST documentation
Processing of corrugated board per VDW standard
For laminated material, sheets may overhang max. 3 mm
For printed sheets, format must be 50% of maximum format
Consistent machine operation is required; first and last ten sheets (with all blanks) are excluded from measurement
