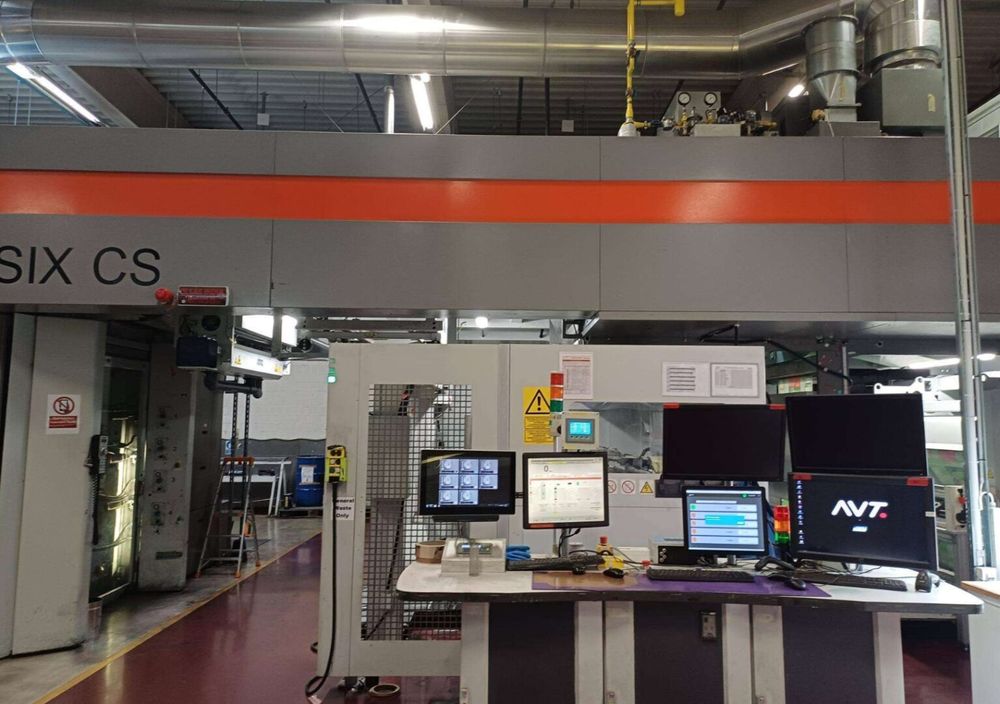

Bobst 20SIX 8 1,250 mm

Condition : Good
Machine Type: Central Impression (CI) Flexographic Printing Press
Gearless Drive: Yes
Number of Printing Colors: 8
Ink Type: Solvent-Based

Technical Specifications:
Maximum Web Width: 1,300 mm
Maximum Printing Width: 1,250 mm
Printing Repeat Range: 320 – 800 mm
Maximum Mechanical Speed: 400 m/min

Suitable Materials:
The machine is suitable for printing on: PE, OPP, CPP, PA, PET and Paper
Material Thickness Range:
Minimum: 12 micron
Maximum: 200 micron

Unwinder:
Automatic Turret Unwind
Shafted & Shaftless Operation
Maximum Reel Diameter: 1,000 mm

Rewinder :
Automatic Turret Rewind
Shafted & Shaftless Operation
Maximum Reel Diameter: 1,000 mm
2 Air Shafts (Ø150 mm)

Drying System:
Gas Drying System

Machine Equipment :
Web Guide System
Video Camera Inspection
AFS Single Side 6 kW Corona Treater
Automatic Cleaning System
INKSPEC Viscosity Control (3 Solvents)
Medium Cut Inline Slitting
Mounting Device Included

Included Accessories:
38 Anilox Rollers
649 Printing Sleeves
36 Intermediate Sleeves (4 Different Sizes)
Set of Sleeves & Anilox Rollers
Basic Trolleys
High-Pressure CO2 System
Basic Spare Parts
Machine Manuals

Printing Tool Inventory:
Sleeves:
Total Quantity: 649 pcs
Various Repeat Sizes Available

Anilox Rollers:
Total Quantity: 38 pcs
Multiple Cell Volumes Available

Adapters: 370 mm, 450 mm, 500 mm, 540 mm, 600 mm (9 pcs of each size)
Doctor Blade Chambers : 12 pcs

Machine Highlights :
8-Color Gearless CI Flexographic Printing Press
High-Speed Production up to 400 m/min
Solvent-Based Printing
Automatic Turret Unwind & Rewind
Fully Equipped with Corona Treatment
Automatic Cleaning System
Camera Inspection System
Comprehensive Sleeve & Anilox Package Included
Machine Available for Inspection in Production
