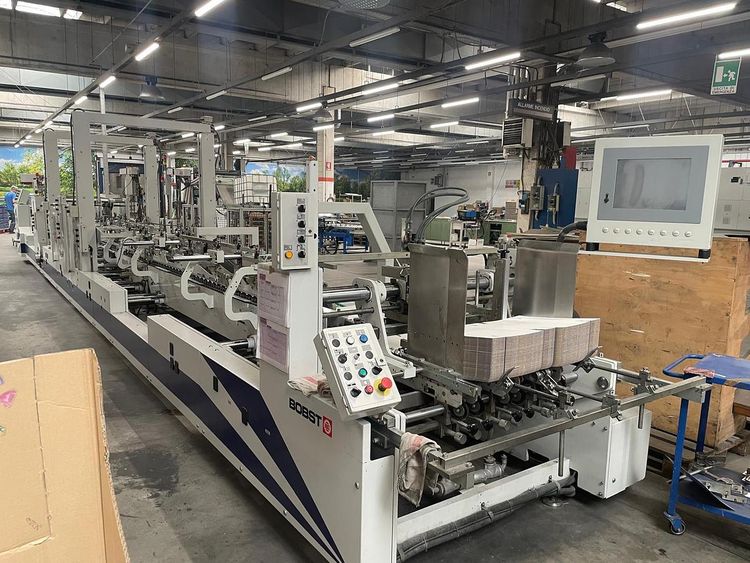

Bobst Alpina 110 II Matic Version A3

Format range max. 1100 mm, min. 66 mm
Standard Equipment:
ACCUFEED
- Total length 1650 mm

PREBREAKER SECTION
- Total length 3300 mm

COMBIFOLDER I
- Total length 1600 mm

COMBIFOLDER II
- Total length 2750 mm

LOWER LEFT-HAND GLUING UNIT
1 Lower left-hand gluing unit with wheel and double scraper
1 Removable glue basin
1 Upper guide with pressure roller
1 Refill bottle
Glue disk width 3 mm

FOLDING SECTION
- Total length 3270 mm

TRANSFER SECTION
- Total length 1700 mm

DELIVERY
- Total length : 4275 mm
- Length of pressure : 3000 mm

MISCELLANEOUS
- Position Indicators

BOBST-ELECTRONIC SISTEMOptional equipment
1 A-5 MOTORIZATION SYSTEM
1 B-30 DEVICE FOR 4-CORNER BOXES WITH LID
1 B-32 DEVICE FOR 6-CORNER BOXES
1 B-50 DEVICE FOR DOUBLE-WALL BOXES
1 C-10 ADDITIONAL LEFT-HAND GLUING WHEEL
1 GLUE APPLICATION SYSTEM WITH QUALITY ASSURANCE
WITH 8 GUNS
1 EA-6 MAIN GAUGE WITH LATERAL AND LONGITUDINAL
ADJUSTMENT
1 EA-8 AIR GAUGE WITH BLOWER SYSTEM
1 EA-30 ROTARY BRUSHES
1 F-1 LOWER CENTRAL CONVEYOR
1 F-5 UPPER CENTRAL CONVEYOR OUTLET
1 FC-32 TOOL FRAME
1 FC-34 SUCTION GUIDES
1 FD-42 TOOL FRAME
1 G-15 CENTRAL CONVEYORS
1 J-10 UPPER PRESSURE BELT1 J-25 INFEED CONVEYOR LEFT AND RIGHT WITH SQUARING
1 L-12 MATIC SYSTEM
